Turning In Field

The swivel hitch allows right-angle and point-row turns without steering the mower-conditioner.

1.

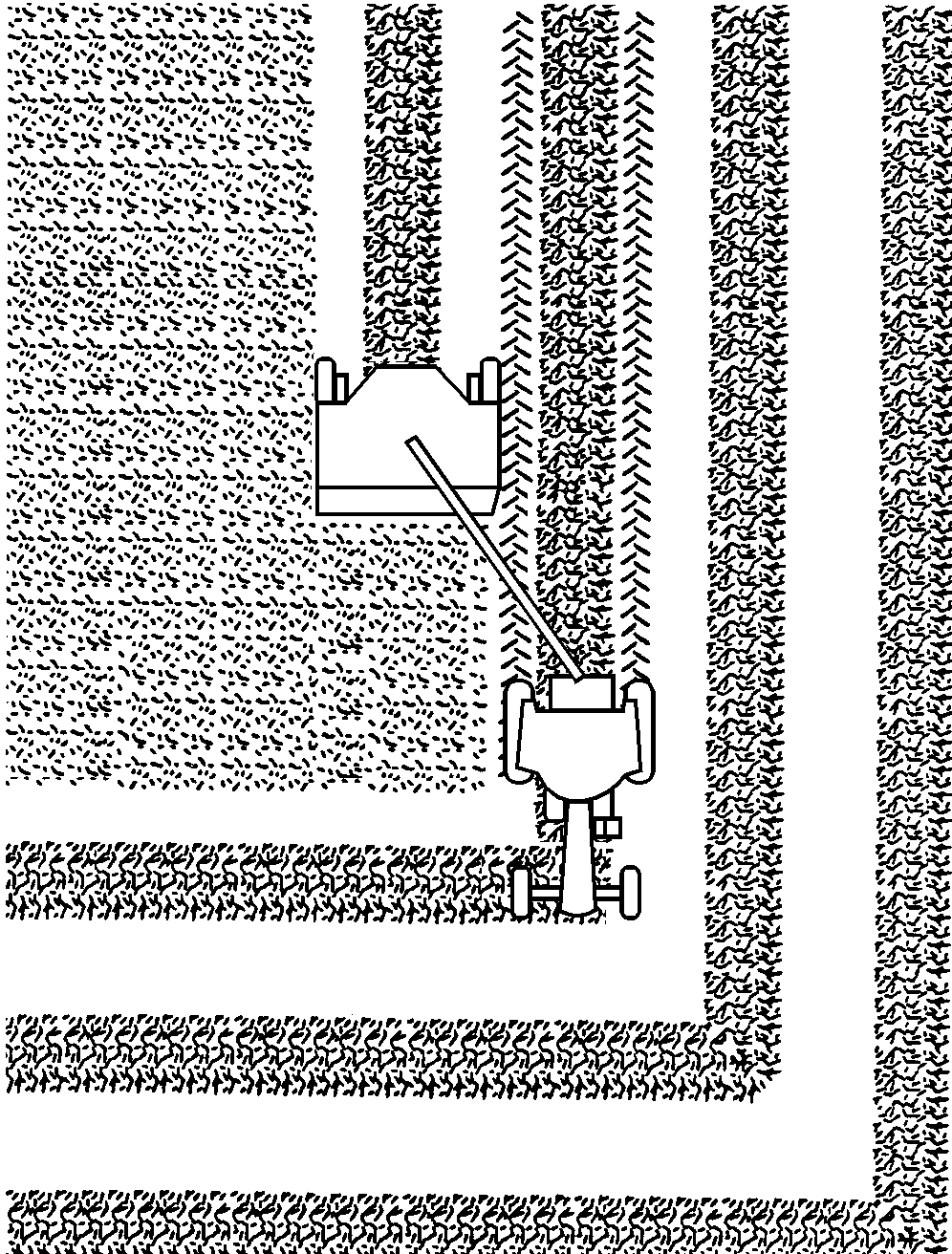

   E41398-UN-25FEB97

   Slow down when approaching a sharp turn.

---




2.

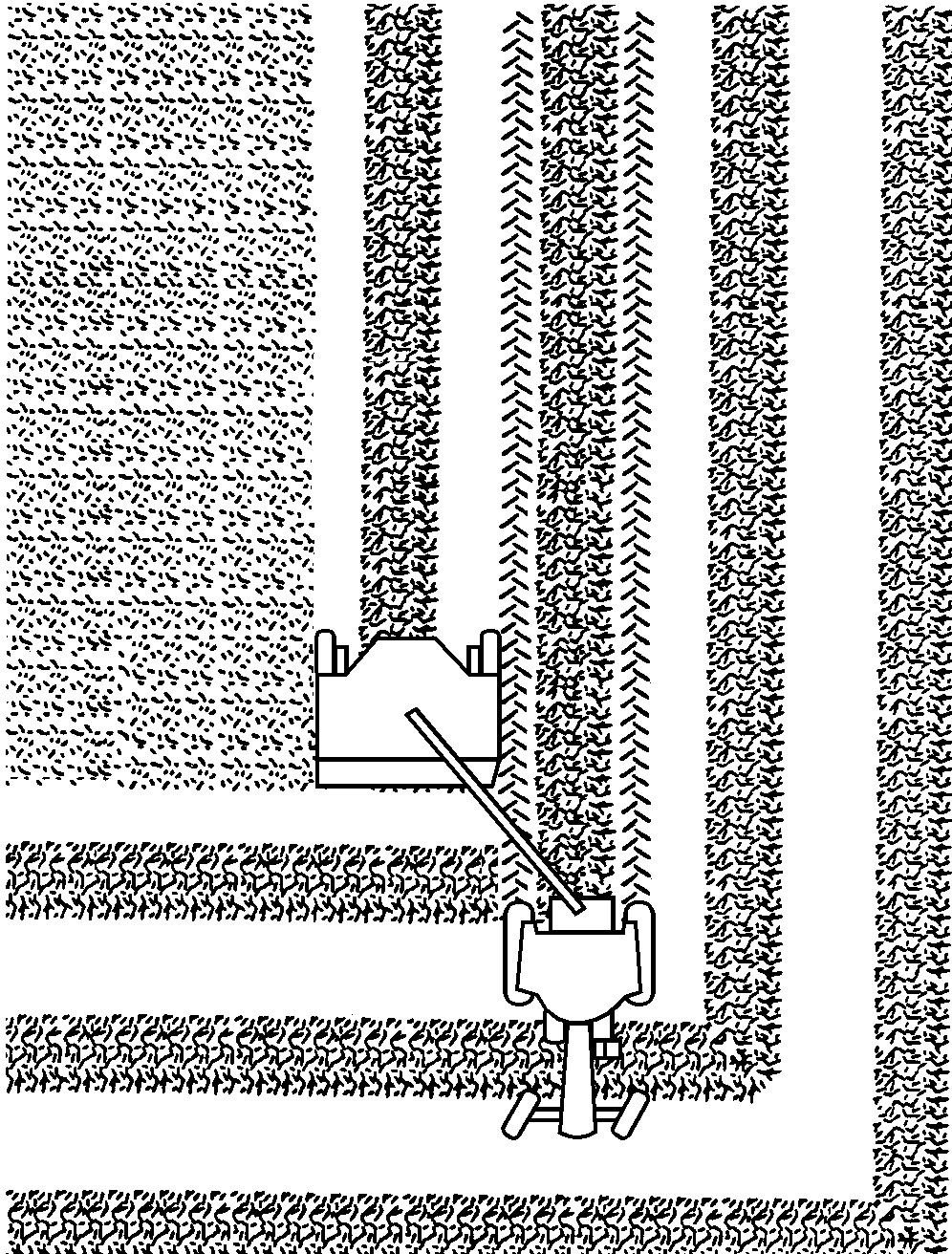

   E41399-UN-25FEB97

   Go past the crop corner until front tractor tires are just past the second windrow.

---




3.

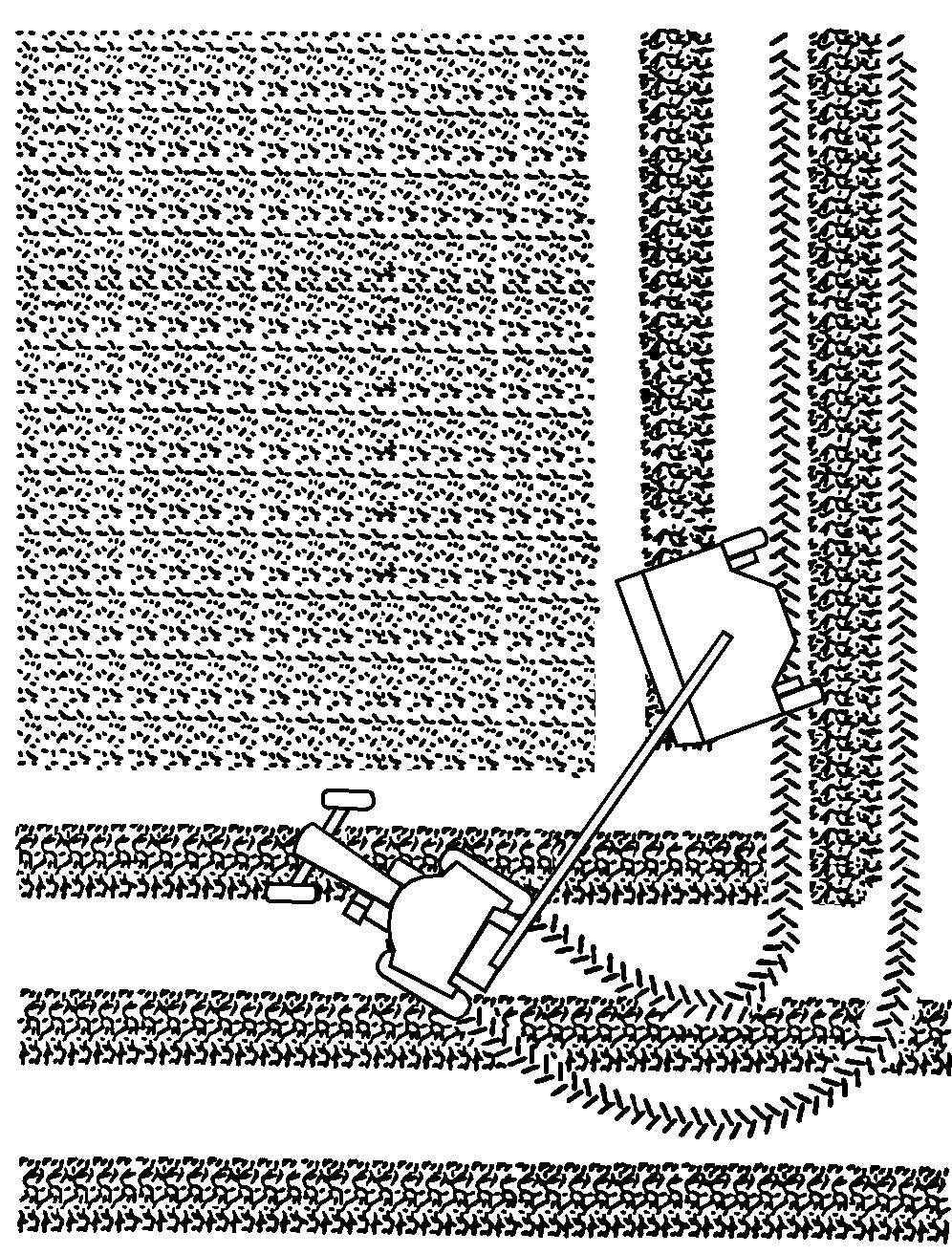

   E41555-UN-25FEB97

   Quickly turn the tractor into the turn until the front tires near the uncut crop.

---




4.

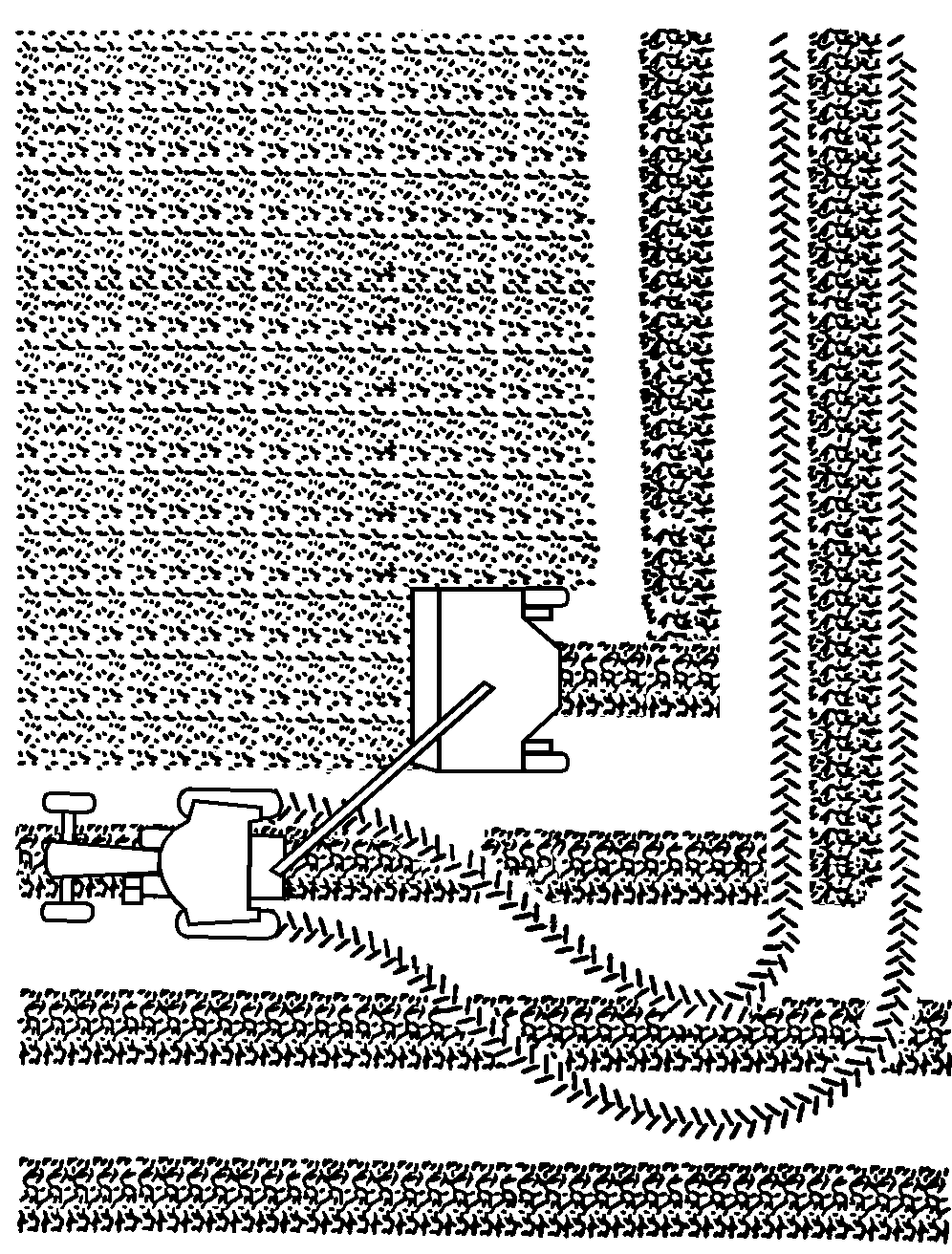

   E41556-UN-25FEB97

   Quickly turn the tractor away from the uncut crop until it is the correct distance from the cut line to resume cutting.

---
