Adjusting Conditioning Intensity
(Impeller Conditioner)

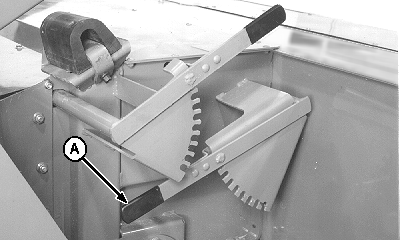

E41412-UN-08FEB97

A - Lever

CAUTION: Disengage PTO and shut off tractor engine before making adjustment.

IMPORTANT: Determine the correct clearance between conditioning hood and tine tips to provide the best conditioning effect for crop, and prevent crop plugging at front of conditioning hood.

NOTE: Clearance between tine tips and conditioning hood has a slight effect on windrow width.

Move lever (A) to adjust conditioning hood.

• Raise conditioning lever to obtain less crop conditioning
• Lower conditioning lever to obtain more crop conditioning
