Positioning Drawbar—Drawbar Hitch

RW21881
RW21881-UN-04DEC92

John Deere 7000 Series Tractor Shown

A - Locking Pins

CAUTION: To avoid personal injury, use locking pins to hold drawbar stationary when operating PTO-driven implements.

  1. Remove locking pins (A) and slide drawbar to center position (shown).

  2. Install locking pins.

  3. Remove clevis assembly, if equipped.

  4. IMPORTANT: If shaft adapter is used to reduce 44 mm (1-3/4 in.) diameter shaft to 35 mm (1-3/8 in.) diameter shaft, measure from end of adapter to drawbar hole.

    Failure to conform to the following setup dimensions can result in serious powerline damage.

    If drawbar is offset, turn drawbar so offset is down, as shown.

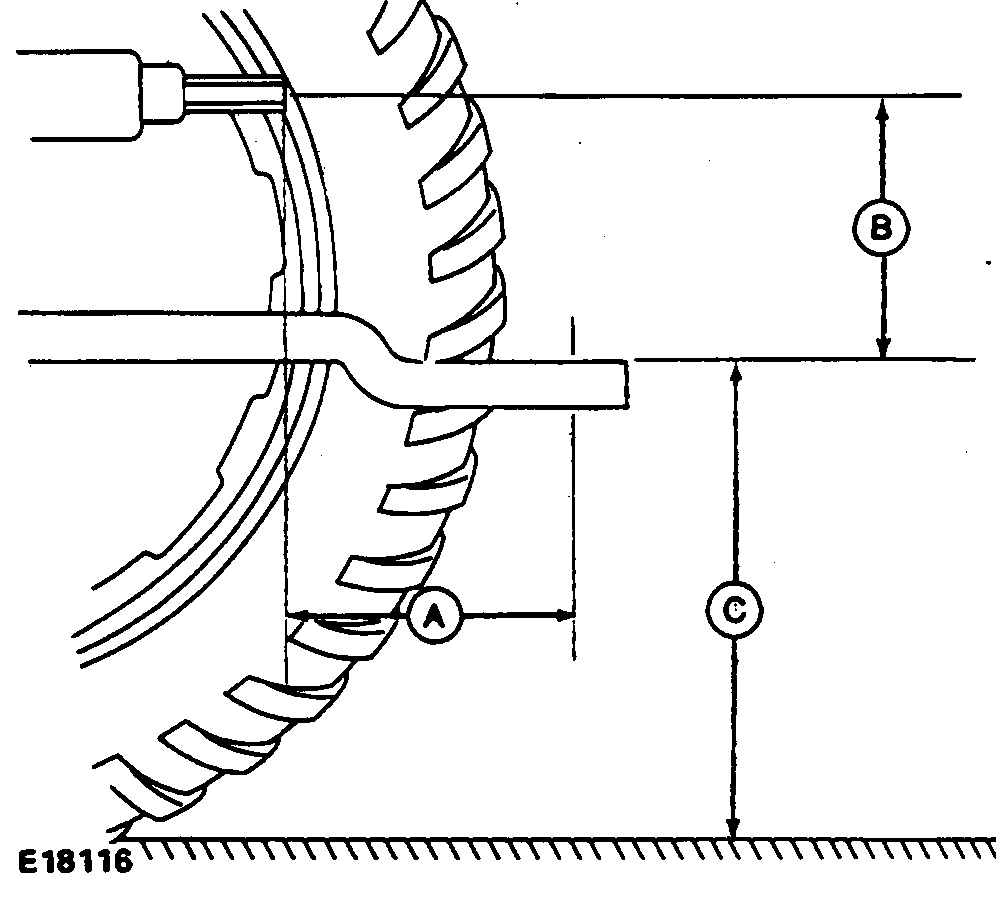

    E18116
    E18116-UN-12SEP88


  5. Set drawbar to the following dimensions:

    1000 rpm

    PTO Size

    A

    mm (in.)

    B

    mm (in.)

    C

    mm (in.)

    1-3/8 in.

    406 (16)

    152—305

    (6—12)

    330—508

    (13—20)

    1-3/4 in.

    508 (20)

    203—305 (8—12)

    330—559 (13—22)
