Attaching to Tractor Hydraulic System

CAUTION:

X9811
X9811-UN-23AUG88

Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

CAUTION: On 7000 Series John Deere tractors; Push SCV lever lockouts to the right (transport lock) before attaching implements to prevent implement movement and possible personal injury.

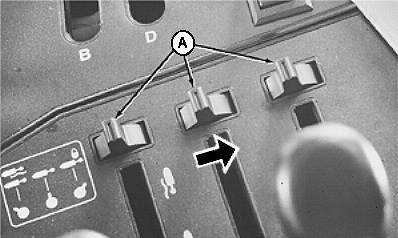

  1. E41388
    E41388-UN-06FEB97

    A - SCV Lever Lockouts

    If equipped, push tractor SCV lever lockouts (A) to the right (transport lock).


  2. IMPORTANT: All hydraulic couplers must be clear of debris, dust, and sand. Use protective caps on fluid openings until ready to make connection. Foreign material can damage the hydraulic system.

    NOTE: To help identify and properly connect hoses, Hose Identification Kits are available from your John Deere dealer.

    Tractor remote cylinder receptacles are labeled I through IV. Receptacles are identified from bottom to top.

    ISO hydraulic couplers are standard with the mower-conditioner. If they do not fit the tractor, see your John Deere dealer.

    RW21239
    RW21239-UN-18JUN92

    John Deere 7000 Series Tractor Shown

    A - Dust Covers

    B - Symbols

    C - Receptacles

    Clean off dust covers (A).


  3. Check to be sure symbols (B) on receptacle identification plate, indicating cylinder movement, match cylinder travel direction.

  4. Insert platform lift hydraulic hose into "extended side" receptacle (C) (SCV I).

  5. Insert tongue swing hydraulic hoses into the next set of tractor receptacles (SCV II).

  6. If equipped with optional hydraulic tilt control, insert hydraulic hoses into the next set of tractor receptacles (SCV III).

  7. Push hoses firmly into tractor receptacles.

NOTE: Tractors equipped with a quick-coupler hitch; To prevent hydraulic hoses from sliding and catching on hitch during operation, a hose support is available through your John Deere dealer. (See Attachments section.)

EX,945IW,K-19-19970213
