Adjusting Windrow Width

NOTE: Roll conditioner shown. Impeller conditioner is similar.

1.
   E41401-UN-07FEB97

   Positioned for Wide Windrow


   E46517-UN-24MAY99

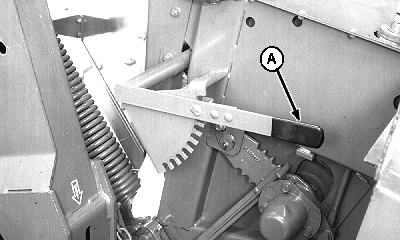

   A - Lever

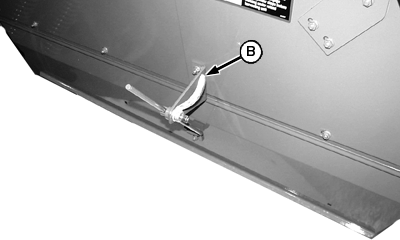

   B - Handle

   Move lever (A) to adjust swathboard.
   • Raise swathboard lever to make a wide windrow
   • Lower swathboard lever to make a narrow windrow



---




2. Loosen handle (B) and move tuck panel in or out for desired windrow width. Tighten handle. Repeat on opposite side.
