Safety Signs

NOTE: Decals (A—D) are located as shown, on both left and right-hand sides of tongue.

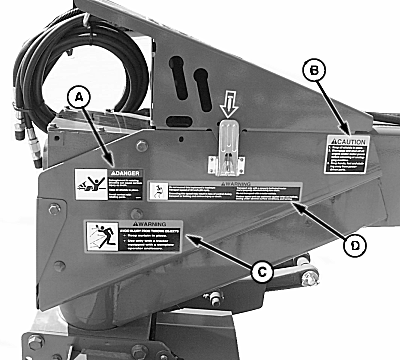

E51639
E51639-UN-20JUN02

Tongue — Left-Hand Side Shown

E40270
E40270-19-29AUG96

A

E40274
E40274-19-01FEB99

B

E40271
E40271-19-29AUG96

C

E50423
E50423-19-07AUG08

"D"


E40272
E40272-19-29AUG96

D

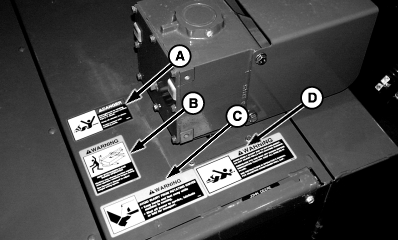

E56043
E56043-UN-26SEP08

Top (Left-Hand Side Shown)

E40270
E40270-19-29AUG96

A

E37357A
E37357A-19-30JUN95

C

E41270
E41270-19-17DEC96

B


NOTE: Decals (A) and (C) and (D) (Roll conditioner) are located on top of platform, both left and right-hand sides.

Decal (B) is on left-hand side only.

E40270
E40270-19-29AUG96

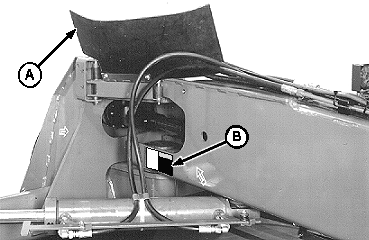

E41357
E41357-UN-29JAN97

Tongue Pivot

A - Rubber Shield

B - Danger Decal


NOTE: Decal (B) is located on right-hand side of tongue only. Raise rubber shield (A) to view decade.

E40273
E40273-19-29AUG96

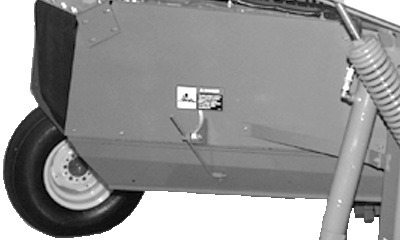

E46614
E46614-UN-14JUN99

Forming Shield


NOTE: Decal is located on both left and right-hand sides of forming shield.

OUO6059,00004CB-19-20080926
