Replacing Rotor Tines (Impeller Conditioner)

Practice Safe Service Procedures

TS261-UN-23AUG88

E41329-UN-27JAN97

A - Cylinder Lock (2 used)

CAUTION: To help prevent personal injury caused by unxpected movement, be sure to service machine on a level surface.

If machine is connected to tractor, engage tractor parking brake and/or place transmission in “Park”, shut off engine and remove key.

If machine is detached from tractor, block wheels to prevent movement.

CAUTION: Engage BOTH cylinder locks when working on machine. Failure to do so can result in personal injury or machine damage.

Before servicing or adjusting mower-conditioner:

1. Disengage all power.
2. Shut off tractor engine.
3. Wait until all moving parts have stopped.

Before working under platform, engage both cylinder locks (A) tp prevent accidental lowering of machine.

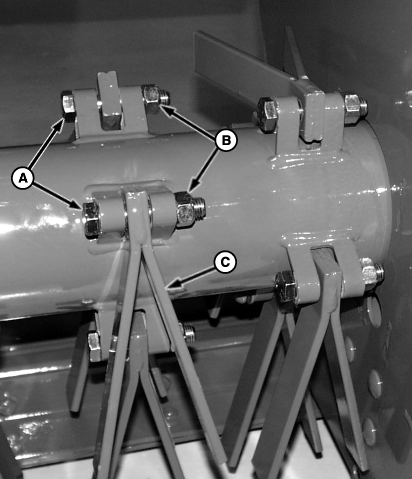

E51853-UN-04SEP02

A - Nut

B - Bolt

C - Tine

IMPORTANT: Do not operate machine if tines are missing. Rotor will be out of balance causing vibration and machine damage.

NOTE: There are 72 tines used on rotary platform equipped with impeller conditioner.

1. Remove nut (A).

2. Remove bolt (B). Check bolt for damage. Replace if necessary

3. Install new tine (C) with bushing. Fasten with washers and pin (B). Tighten nut on bolt to avoid the risk of loss.
