Preparing Mower-Conditioner for Field Operation

1.

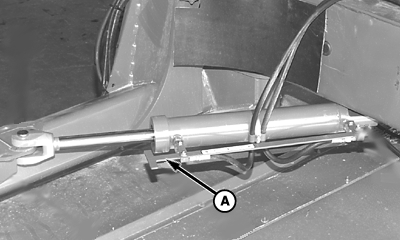

   E46982-UN-28OCT99

   Standard Cylinder Shown

   A - Transport Lock Lever

   Push transport lock lever (A) toward tongue to open swing cylinder ports.

---




2. Activate tongue swing circuit to move mower-conditioner to desired field operating position.

3.

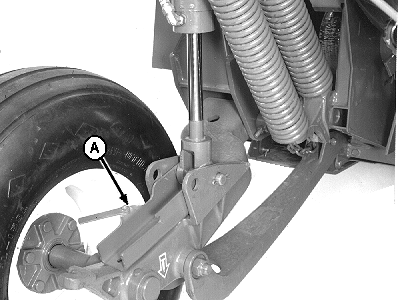

   E41331-UN-27JAN97

   A - Cylinder Lock

   Raise platform and move cylinder lock (A) to unlocked position. Repeat on opposite side.

---




4. Lower platform to the ground.
