Detaching Mower-Conditioner From Tractor

CAUTION: To prevent personal injury caused by unexpected movement:

1. Park machines on a level surface
2. Engage tractor parking brake and/or place transmission in "Park"
3. Disengage PTO
4. Shut off tractor engine and remove key

1. Park mower-conditioner on a level surface, or block mower-conditioner wheels so machine cannot roll after detaching from the tractor.

2. Lower platform.

3.
   RW21226-UN-12JUN92


   E41389-UN-06FEB97

   A - Load/Depth Control

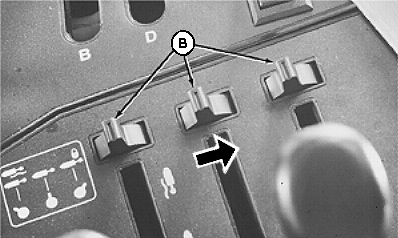

   B - SCV Lever Lockouts

   Make sure tractor load/depth control is in position (A).

---




4. CAUTION: On 7000 Series John Deere tractors; Push SCV lever lockouts to the right (transport lock) before detaching implements to prevent implement movement and possible personal injury.

   If equipped, push tractor SCV lever lockouts (B) to the right (transport lock).

5. CAUTION: To prevent possible injury, use ONLY hitch control lever (A) when detaching implements. DO NOT use raise/lower switch (B).


   E41376-UN-03FEB97

   A - Hitch Control Lever

   B - Raise Lower Switch

   Tractor with quick-coupler hitch; Slowly push hitch control lever (A) to lower mower-conditioner hitch close to the ground.

   Tractor with draft link hitch; Slowly push hitch control lever (A) to lower mower-conditioner hitch to the ground.

---




6. Engage tractor parking brake and/or place transmission in "Park".

7. Shut off tractor engine and remove key.

8. CAUTION:


   X9811-UN-23AUG88

   Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

   If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.


   RW21394-UN-18JUN92


   E55656-UN-25APR08

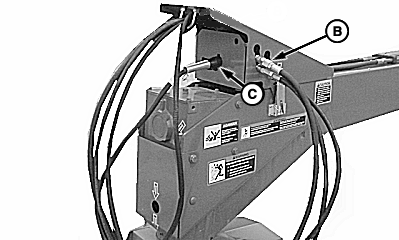

   A - Lever

   B - Hydraulic Hose Storage Slots

   C - Wiring Harness Storage Slot

   Push levers (A) down to disconnect hydraulic hoses from tractor receptacles. Store hydraulic hoses in slots (B).

---




9. Disconnect tail/warning light harness from tractor. Insert plug end of harness in storage slot (C).

10. CAUTION:


    TS198-UN-23AUG88


    E41391-UN-06FEB97

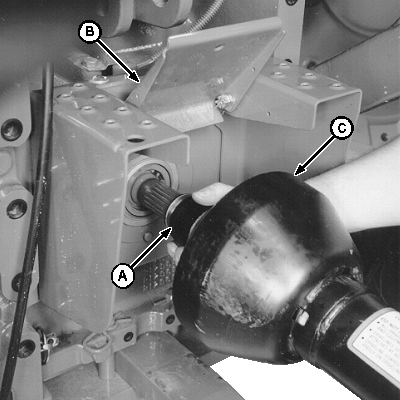

    A - Collar

    B - PTO Shield

    C - Driveline

    Shut off tractor engine before detaching PTO driveline. Entanglement in rotating driveline can cause serious injury or death.

    Raise tractor PTO shield (B), if equipped.

---




11. Support driveline (C) and pull back on collar (A). Slide driveline off tractor shaft.

12. Lower tractor PTO shield.

13.
    RW55146-UN-03DEC93

    A - Control Lever (2 used)

    Tractor with quick-coupler hitch;
    1. Raise both latch control levers (A) on quick-coupler.
    2. Lower mower-conditioner hitch to the ground. Continue lowering quick-coupler until hooks clear mower-conditioner hitch pins.
    3. Carefully drive tractor away.



---

E55784-UN-28MAY08

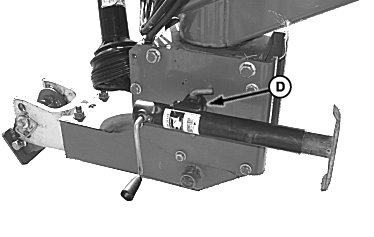

Jackstand Shown in Storage Location

E55787-UN-28MAY08

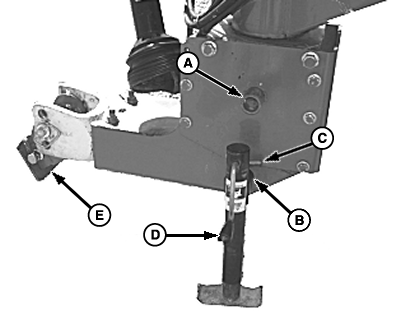

A - Jackstand Storage Location

B - Jackstand Lifting Location

C - Pin and Quick-Lock Pin

D - Jackstand Handle

E - Adapter

CAUTION: Do not attempt to lift tongue load from jackstand storage location (D). Machine may become unstable if lifted from this location.

1. Remove jackstand from storage location (A) and place it in the lifting location (B).
2. Move jackstand to location shown. Fasten with pin and quick-lock pin (C). Turn handle (D) to take load off of tractor drawbar.
3. Disconnect safety chain from tractor.
4. Remove quick-lock pin and hitch pin.
5. Carefully drive tractor away from mower-conditioner.
6. Remove adapter from tractor drawbar. Install adapter (E) on mower-conditioner hitch with hitch pin and quick-lock pin.
