Removing Disks

1. Raise front platform doors to access cutterbar.

2. CAUTION: Knives have two cutting edges. Be careful when working around the knives. Knives are sharp and can cause serious injury. Wear gloves when handling knives.


   TS268-UN-23AUG88

   To avoid serious injury, rotate both knives on all disks, so they are positioned UNDER the disks.

---




3. Put a piece of wood between either end disk and outer sidesheet.

4. NOTE: If removing left-hand end disk, refer to REPLACING LEFT-HAND END DISK DRIVER in this section. If removing right-hand end disk, refer to REPLACING RIGHT-HAND END DISK DRIVER in this section.

   Disks next to both left and right-hand end disks are equipped with short converging drums (B). The following procedures apply to all disks.


   E55690-UN-25APR08


   E51668-UN-25JUN02

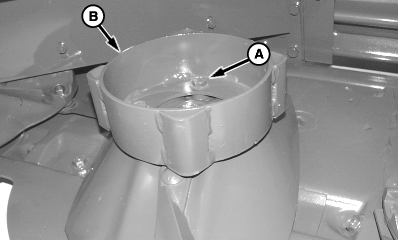

   Disk with Short Converging Drum

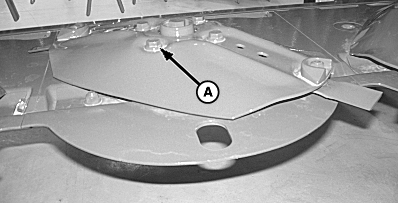

   A - Cap Screw (4 used)

   B - Short Converging Drum

   Remove four cap screws (A).

---




5. Remove short converging drum (B) (if equipped) and disk from cutterbar.
