Checking Transport Light Function

NOTE:

E55695
E55695-UN-25APR08

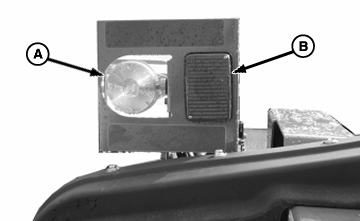

Left-Hand Side Shown

E55696
E55696-UN-25APR08

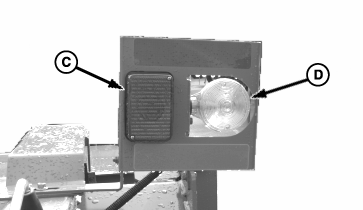

A - Amber Light (Left-Hand Side)

B - Red Light (Left-Hand Side)

C - Red Light (Right-Hand Side)

D - Amber Light (Right-Hand Side)

Then flash rate of the mower-conditioner transport lights is the flash rate of the tractor.

Connect the mower-conditioner transport lights to the tractor outlet and check the mower-conditioner transport light function.

  • Tractor Lights in Field Position
    • (B) and (C) Solid
  • Tractor Lights in Road Position
    • (C) and (B) Solid
    • (D) and (A) Flashing

  • Right Turn
    • (C) and (D) Flashing
    • (B) Solid Bright
    • (A) Solid
  • Left Turn
    • (B) and (A) Flashing
    • (C) Solid Bright
    • (D) Solid
  • Four-Way
    • (D) and (A) Flashing in unison

OUO6085,00008A5-19-20080924
