Attaching Mower-Conditioner Drawbar Hitch to Tractor

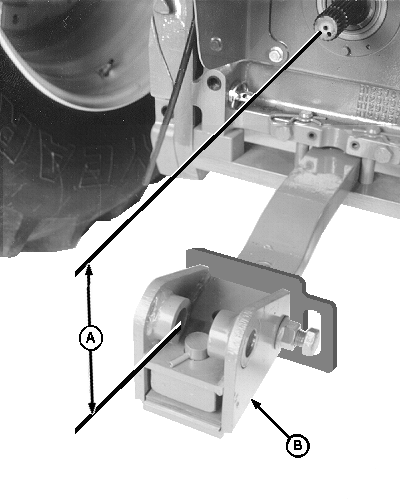

E41383
E41383-UN-06FEB97

A - Distance

B - Adapter

  1. Adjust tractor drawbar and install hitch adapter. (See procedures in Preparing the Tractor section.)

  2. Measure approximate distance (A) from centerline of hitch point hole in adapter (B) to centerline of tractor PTO shaft. Record this measurement.

  3. Remove quick-lock pin and hitch pin from front of mower-conditioner hitch.

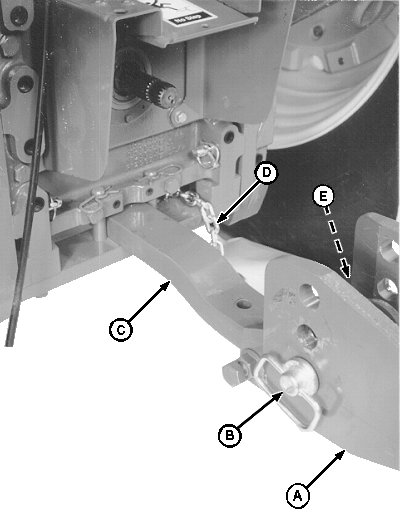

  4. E41384
    E41384-UN-06FEB97

    A - Mower-Conditioner Hitch

    B - Hitch Pin

    C - Tractor Drawbar

    D - Safety Chain

    E - Slot In Adapter

    Back up tractor to mower-conditioner. Align adapter on tractor drawbar (C) with front of mower-conditioner hitch (A).


  5. Engage tractor parking brake and/or place transmission in "Park".

  6. Shut off tractor engine and remove key.

  7. IMPORTANT: Driveline must be level when operating mower-conditioner. Attach mower-conditioner in correct position to prevent driveline damage.

    Turn handle on jackstand to align specific hole in mower-conditioner hitch with adapter on tractor, according to recorded measurement made in Step 2. (see chart)

    Mower-Conditioner Hitch

    Recorded Measurement

    Top Hole

    118—171 mm (4 11/16—6 3/4 in.)

    Middle Hole

    172—224 mm (6 3/4—8 13/16 in.)

    Bottom Hole

    225—277 mm (8 7/8—10 29/32 in.)

  8. Install hitch pin (B) and quick-lock pin.

  9. Route safety chain (D) through slot (E) in adapter and connect to tractor drawbar supporting structure, as shown. Do not fasten to drawbar. Remove excess slack.

  10. Attach PTO driveline. (See procedure in this section.)

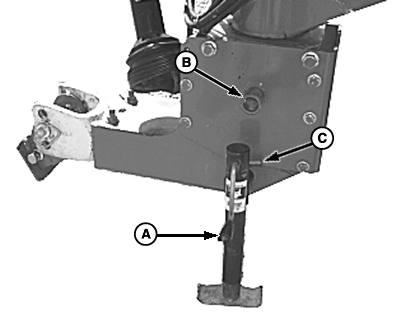

    E56036
    E56036-UN-24SEP08

    A - Turn Handle

    B - Storage Location

    C - Pin and Quick-Lock Pin


  11. CAUTION: Do not attempt to lift tongue load from jackstand storage location (B). Machine may become unstable if lifted from this location.

    Turn handle (A) on jackstand to take load off of jackstand.

  12. Remove quick-lock pin, pin (C) and jackstand.

  13. Install jackstand in storage location (B) with handle facing toward tractor. Retain with pin and quick-lock pin.

OUO6085,00008D9-19-20080924
