Safety Features

E76492-UN-14JUL14

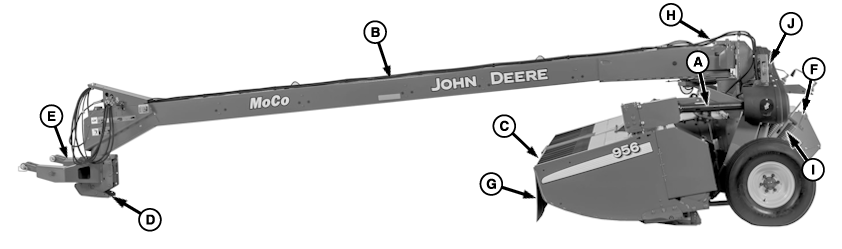

Mower-Conditioner Safety Features

(A)—Fully shielded power take-off and platform drive shafts.

(B)—Enclosed driveline passes through full length of tongue box section.

(C)—Hinged shielding covers drive component area. Locks in position for convenient opening and closing for service access.

(D)—Built in parking stand or jackstand (on drawbar machines) suppose and position hitch points for hookup and removal.

(E)—Safety chain (on drawbar machines) further secures machine to tractor drawbar.

(F)—Rear curtain (impeller conditioner models) helps to contain thrown objects.

(G)—Protective curtain shields front of the cutterbar and helps to contain thrown objects.

(H)—Manually operated lock valves prevent accidental pivoting during transport.

(I)—Platform lift locks keep platform from being lowered inadvertently during service or transport.

(J)—Slow moving vehicle (SMV) emblem, flashing warning lights and reflectors enhance visibility during road transport. Flashing warning lights synchronize with tractor turn signals to indicate turn intention to vehicular traffic.
