Raising and Lowering Front Doors and Curtains

CAUTION: Always lower doors and curtains before operating mower-conditioner to reduce the potential of thrown objects.

Door and curtain can be fully opened to permit access to the cutterbar.

E76488-UN-14JUL14

E76489-UN-14JUL14

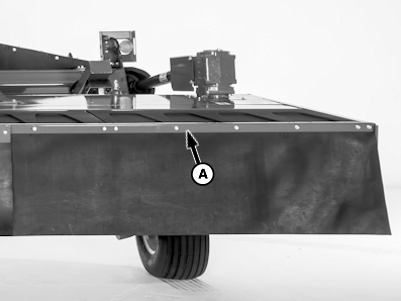

A - Door

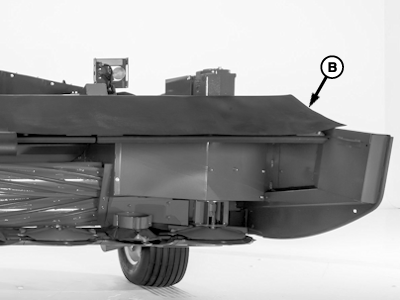

B - Curtain

To raise:

Lift door (A) and curtain (B). Raise door until fully open

To lower:

Pull forward on door and lower to original position
