Adjusting Roll Timing (Roll Conditioner)

1.
   E76490-UN-14JUL14

   A - Door

   Open door (A).

---




2.
   E41502-UN-16FEB97

   A - Cap Screw (4 used)

   Loosen four cap screws (A).

---




3.

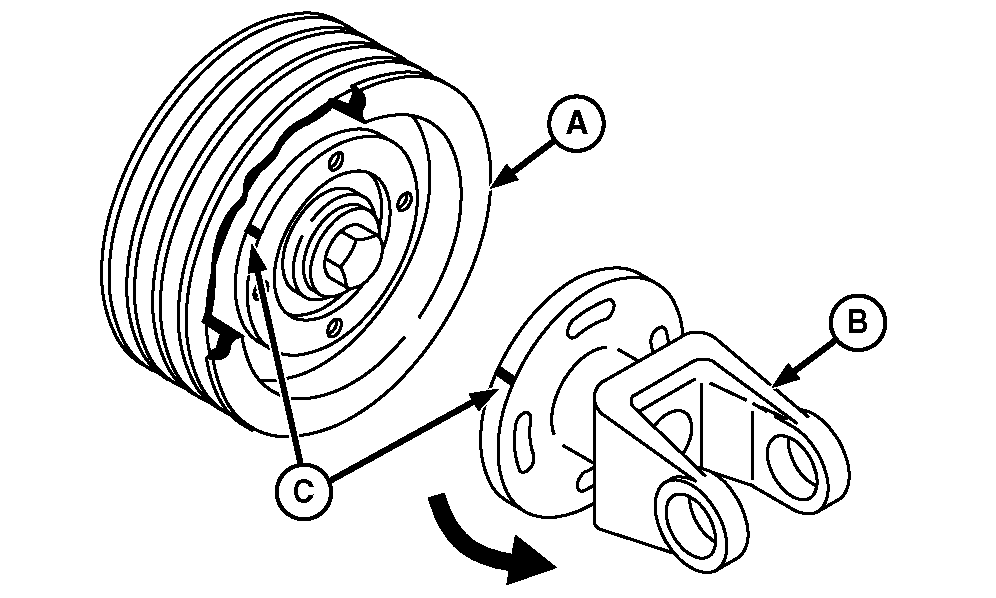

   E41505-UN-18FEB97

   A - Driven Sheave

   B - Driveline Flange

   C - Scribe Mark

   Hold driven sheave (A) and rotate driveline flange (B) counterclockwise until it stops from roll lugs/flute hitting each other.

---




4. Scribe a mark (C) across mating edges of driveline flange and driven sheave.

5.

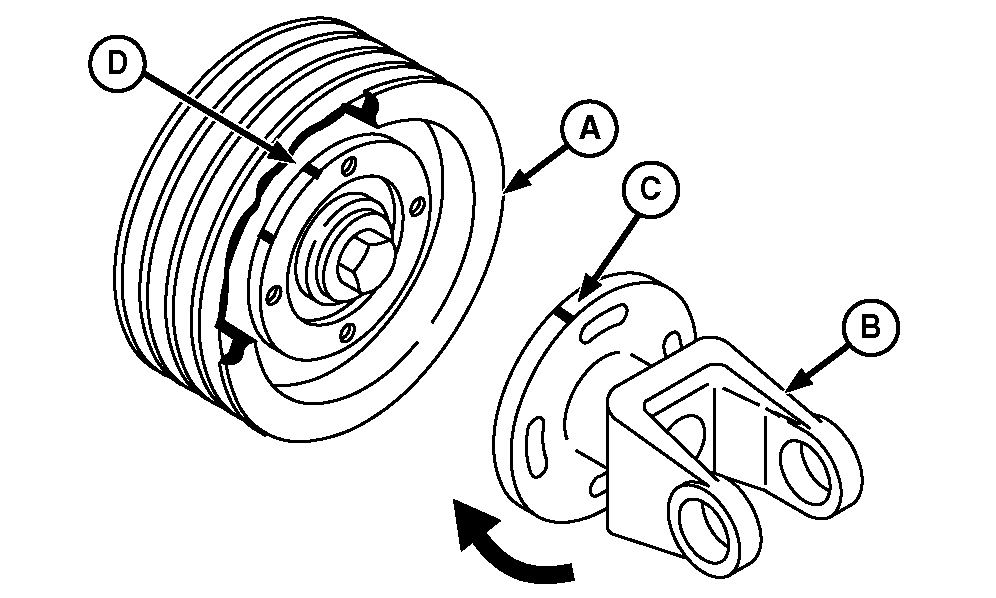

   E41506-UN-18FEB97

   A - Driven Sheave

   B - Driveline Flange

   C - Scribe Mark

   D - Scribe Mark

   Hold driven sheave (A) and rotate driveline flange (B) clockwise until it stops from roll lugs/flute hitting each other.

   NOTE: If driveline flange reaches the end of its slot before roll lugs/flutes contact each other, Index gearbox sheave one spline tooth and repeat procedure.

---




6. Scribe a mark (D) on mating edge of drive sheave, opposite mark (C) on driveline flange.

7.

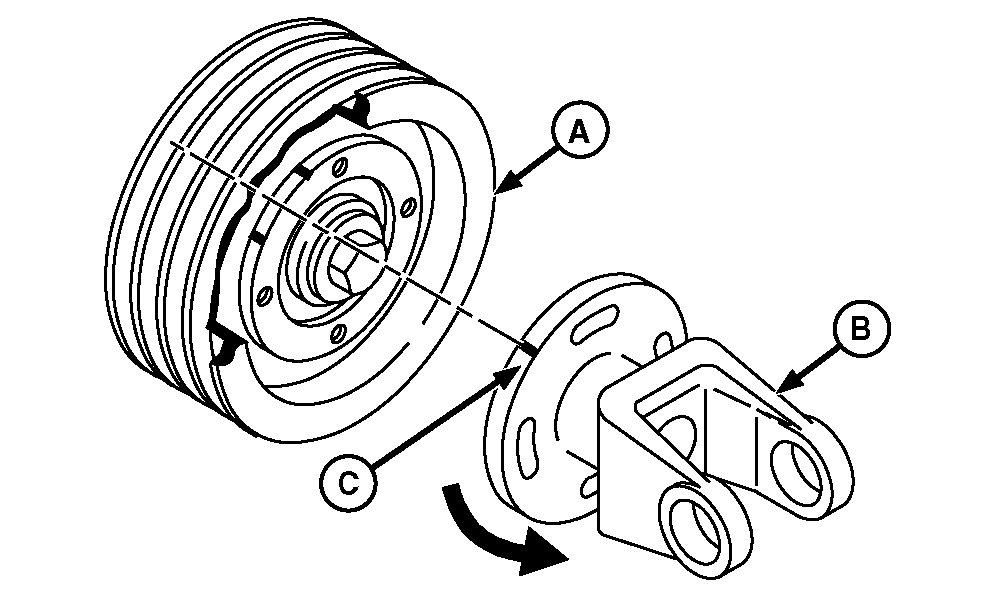

   E41507-UN-18FEB97

   A - Driven Sheave

   B - Driveline Flange

   C - Scribe Mark

   Hold driven sheave (A) and rotate driveline flange (B) counterclockwise until mark (C) is halfway between marks made on mating edge of driven sheave.

---




8. Tighten four cap screws to specifications.

   Item	Measurement	Specification
   Driveline Flange-to-Driven Sheave Cap Screws	Torque	95 N˙m (70 lb-ft)

9. Close door.
