Every 10 Hours

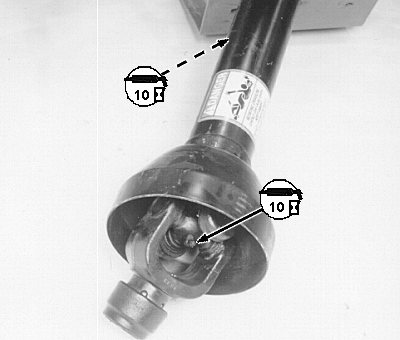

Front Driveline

E41415-UN-09FEB97

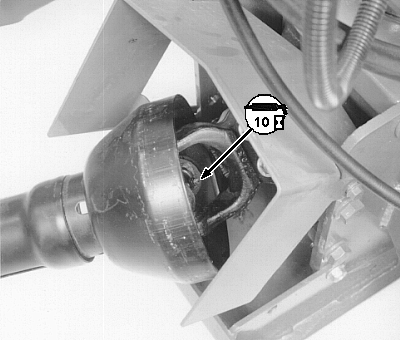

Front Cross & Telescoping Element

E41416-UN-09FEB97

Rear Cross

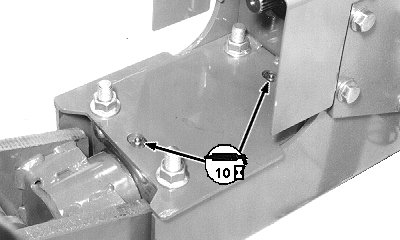

Drawbar Pivot (If Equipped)

E41417-UN-09FEB97

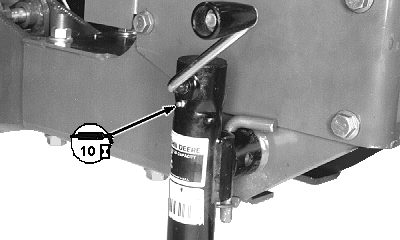

Jackstand (If Equipped)

E41418-UN-09FEB97

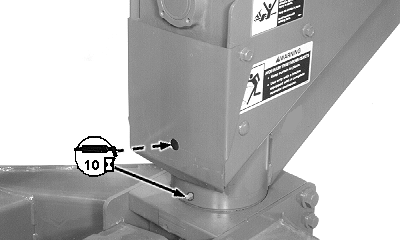

Swivel Hitch Pivot

E41419-UN-09FEB97

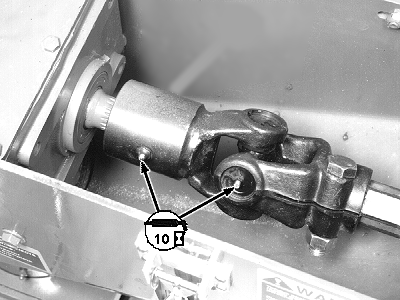

Overrunning Coupler

E41420-UN-24FEB97

Overrunning coupler is located at front of tongue. Unlatch and open hose support cover to access.

NOTE: Additional driveline lubrication fittings are provided opposite ones shown for improved access. Lubrication of only two fittings is required.

Manually rotate driveline, as necessary, to access all lubrication fittings.

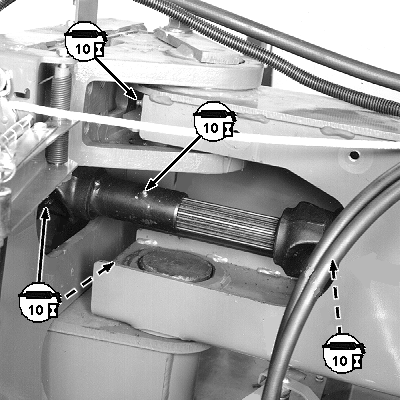

Tongue Pivot (Top and Bottom)
Rear Main Driveline (3 lubrication fittings)

E41421-UN-24FEB97

Lift rubber flap on right-hand side of tongue to access tongue pivots and rear main driveline.

NOTE: Additional lubrication fittings are provided opposite ones shown for improved access. Lubrication of only three fittings is required on driveline.

Manually rotate driveline, as necessary, to access lubrication fittings.

Thoroughly lubricate tongue pivot and rear main driveline fittings until grease can be seen.

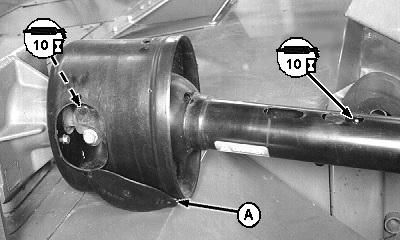

Platform Driveline

E41422-UN-09FEB97

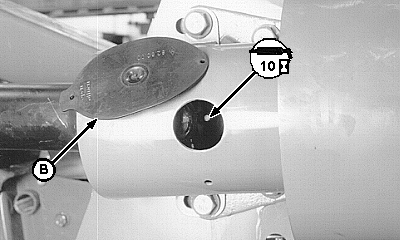

Front Cross & Telescoping Element

E41423-UN-09FEB97

Rear Cross

A - Plastic Cover

B - Plastic Cover

Pry open either end of plastic covers (A and B) and rotate out of way to access lubrication fittings.

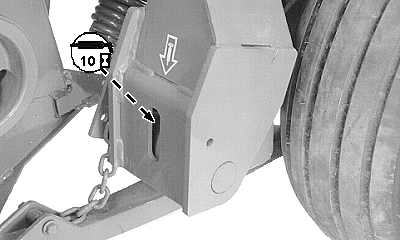

Wheel Support (left and right-hand side)

E41424-UN-09FEB97

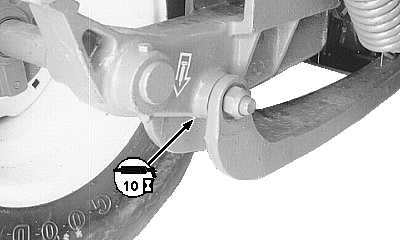

Lift Arm Pivot (left and right-hand side)

E41425-UN-09FEB97

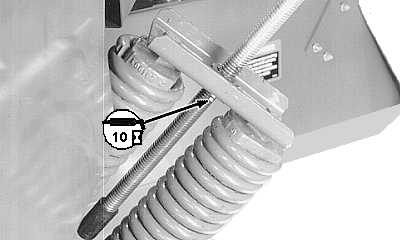

Float Springs Crank (left and right-hand side)

E41426-UN-09FEB97

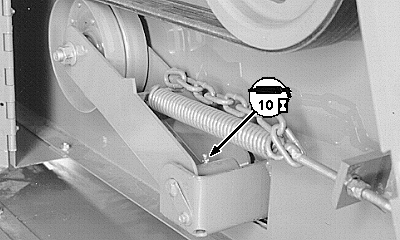

Main Drive Belt Idler Pivot

E41427-UN-09FEB97

Open door at rear of machine to access idler pivot.

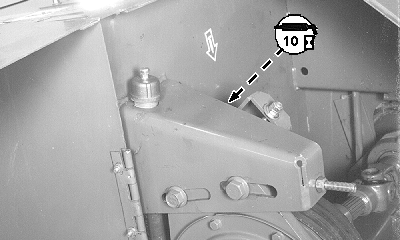

Conditioner Drive Belt Idler Pivot

E41489-UN-15FEB97

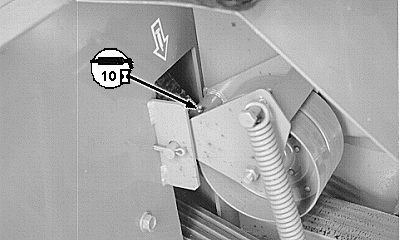

Roll Conditioner

E41428-UN-09FEB97

Impeller Conditioner

Open door at left-hand side of machine to access idler pivot.

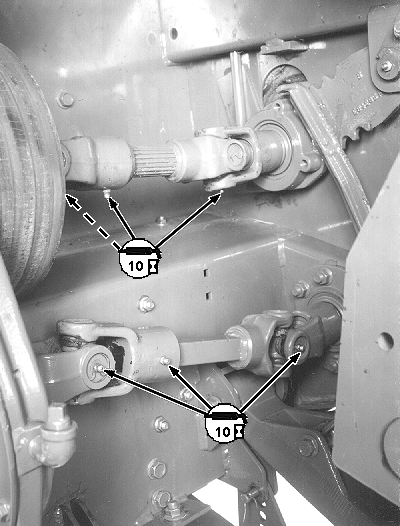

Top and Bottom Roll Drivelines (Roll Conditioner)

E55658-UN-25APR08

Open door at left-hand side of machine to access drivelines.

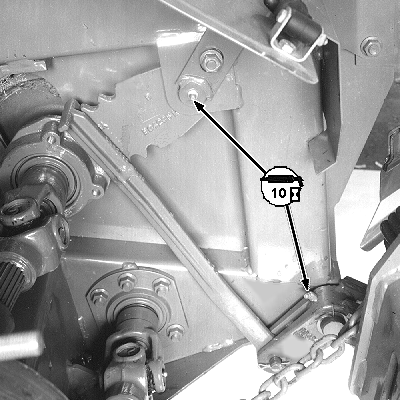

Roll Tension Bell Crank and Roll Arm Pivot Pin (left and right-hand side) (Roll Conditioner)

E55659-UN-25APR08

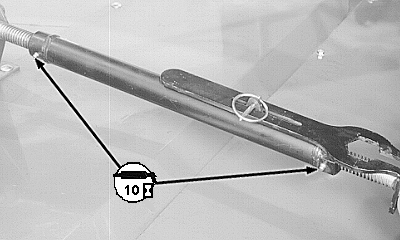

Turnbuckle Top Link (if equipped)

E41429-UN-09FEB97

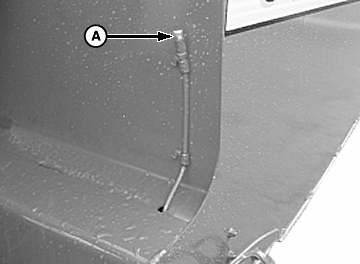

Cutterbar and Breathers—Cleaning

E55694-UN-25APR08

NOTE: Cutterbar breathers are located on right-hand side of machine and on top of filler cap.

Clean crop material, dirt, mud and debris from around cutterbar and cutterbar breathers daily. Buildup of debris can cause excessive wear on the cutting components.

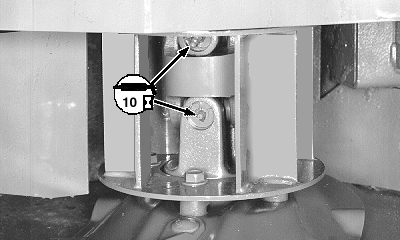

Cutterbar Driveline

E44379-UN-25MAY99

Raise left-hand side front door to access driveline. (See RAISING AND LOWERING FRONT DOORS AND CURTAINS in Operating the Mower-Conditioner section.)
