Adjusting Conditioner Drive Belt Tension—Roll Conditioner

1.
   E76490-UN-14JUL14

   A - Door

   Open door (A).

---




2.
   E55665-UN-25APR08

   A - Cap Screws

   B - Idler Adjustment Nuts

   C - Draw Bolt Nut

   D - Cap Screws

   Loosen four cap screws (A) and (D) and nuts (B).

---




3. Tighten nut (C) until all slack is removed from drive belt.

4. Tighten cap screws (A and D).

5.
   E41501-UN-16FEB97

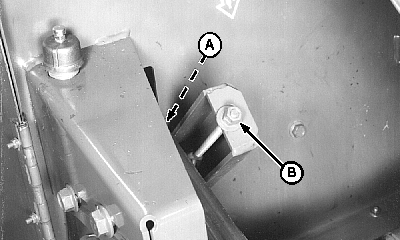

   A - Spring

   B - Nuts

   Adjust nuts (B) until dimension (inside-of-hook to inside-of-hook) at spring (A) is according to specifications.

   Item	Measurement	Specification
   Inside of Hook-to-Inside of Hook	Distance	275 mm ± 5 mm (10.826 in ± 0.196 in.)

---
