Adjusting Conditioner Drive Belt Tension—Impeller Conditioner

1.
   E76490-UN-14JUL14

   A - Door

   Open door (A).

---




2.

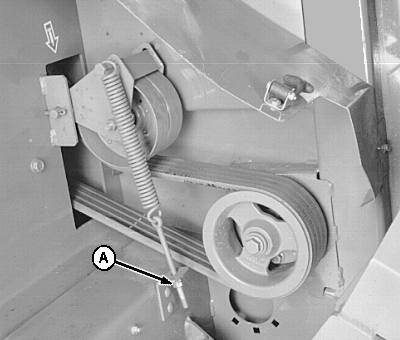

   E41450-UN-10FEB97

   A - Nuts

   Adjust nuts (A) until spring dimension (inside-of-hook to inside-of-hook) is according to specifications.

   Item	Measurement	Specification
   Inside-of-Hook to Inside-of-Hook	Distance	275 mm ± 5 mm (10.826 in ± 0.196 in.)

---




3. Close door.
