CAUTION: Twine arms can move unexpectedly when twine arm power is on. Turn off power to twine arms when standing or placing hands near twine arms.

Twine knife has two cutting edges. Be careful when working around the knife. It is sharp.

NOTE: Adding or removing shims located between the twine arm support and crossbeam will affect dimensions at the following locations:

• Twine arm-to-starter roll:

  • Twine arm pointing directly toward rear.

  • Twine arm toward right side of baler.

  • Twine arm toward left side of baler.

• Twine arm-to-cutter link support.

• Twine arm-to-twine arm stop.

Check dimensions at all locations before making any adjustments. Adding or removing shims at one location may change the dimension at another location.

2. Lower pickup so twine arms will not contact pickup teeth.

3. Shut off tractor engine and remove key. Lock the gate.

4. Remove lower drive roll chain so starter roll can be rotated by hand.

AG,OUMX005,1536 -19-11JUL06-1/5

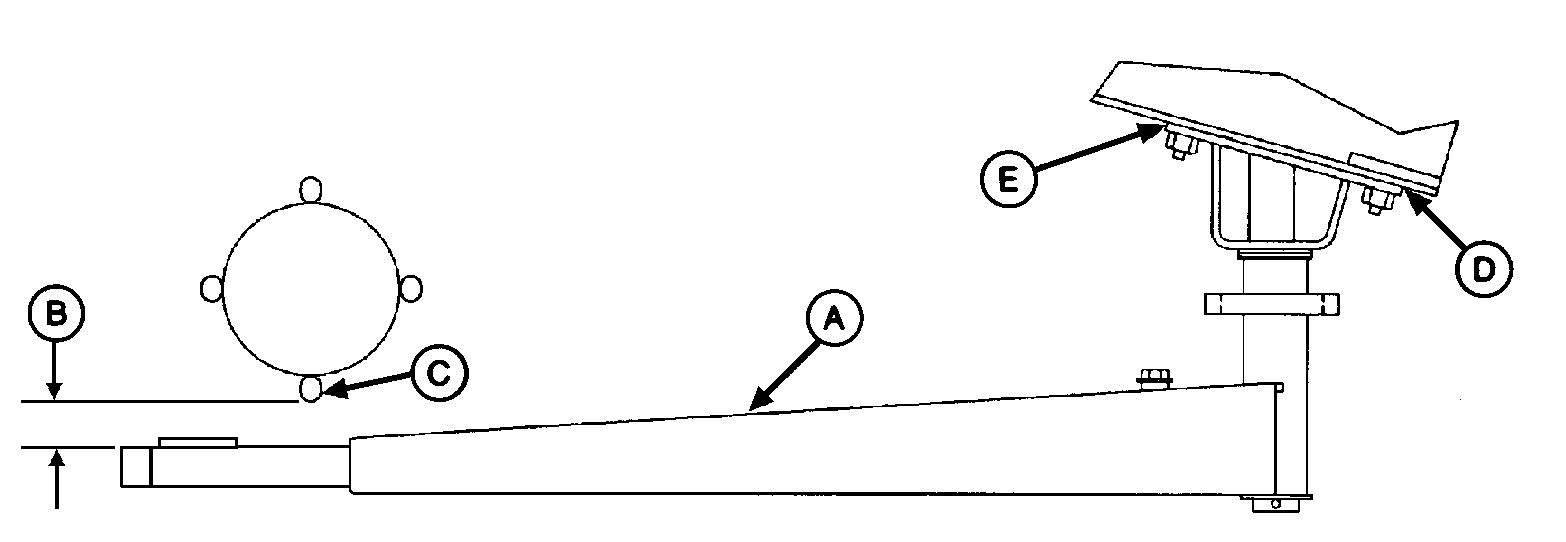

A-Twine Arm
B-Dimension

C-Starter Roll Rod

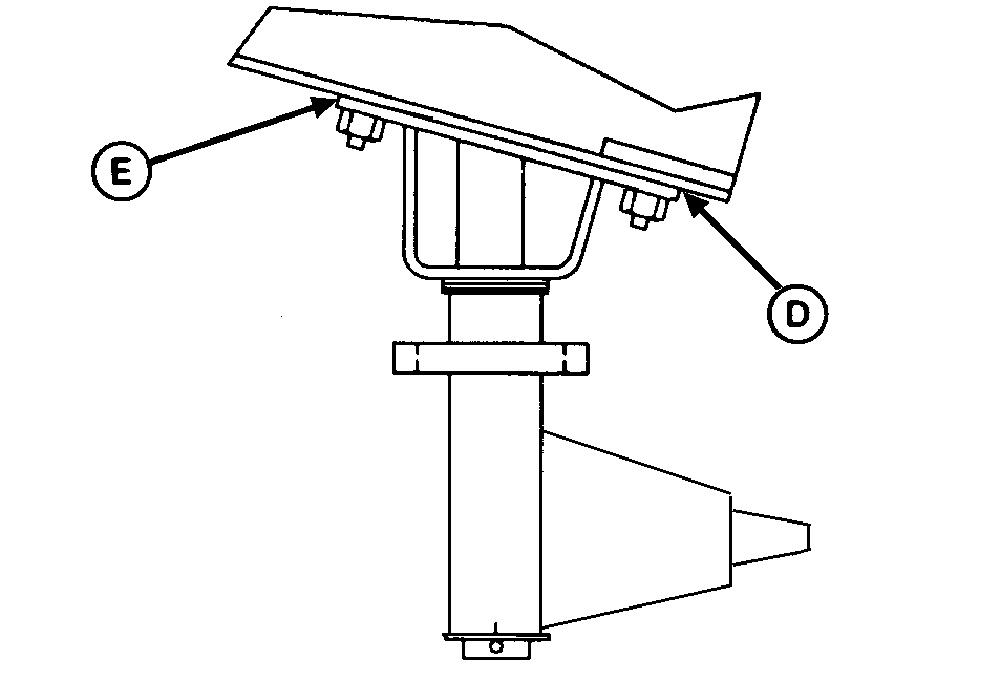

D-Shim Location

E-Shim Location

2. Press EXTEND key to move twine arms so rear twine arm (A) points toward rear of baler.

3. Turn monitor-controller OFF. Turn tractor key to OFF position. Remove key.

4. Rotate starter roll until starter roll rod (C) is closest to the twine arm tube.

5. By hand, remove end play at end of twine arm toward starter roll. Check dimension (B) between starter roll rod (C) and twine arm tube. Dimension (B) should be within specifications.

Specification

6. If dimension (B) is less than specified:

• Remove shims, as necessary, at location (D) between twine arm support and crossbeam.

Remove an equal amount of shims at the right-hand and left-hand mounting bolts. (One shim moves twine arm approximately 3 mm [1/8 in.].)

OR

• Add shims, as necessary, at location (E) between twine arm support and crossbeam. Add an equal amount of shims at the right-hand and left-hand mounting bolts.

7. If dimension (B) is more than specified:

• Remove shims, as necessary, at location (E) between twine arm support and crossbeam. Remove an equal amount of shims at the right-hand and left-hand mounting bolts. (One shim moves twine arm approximately 3 mm [1/8 in.].)

  OR

• Add shims, as necessary, at location (D) between twine arm support and crossbeam.

8. Turn tractor key to ON position. Do not start tractor engine. Turn monitor-controller ON.

AG,OUMX005,1536 -19-11JUL06-2/5

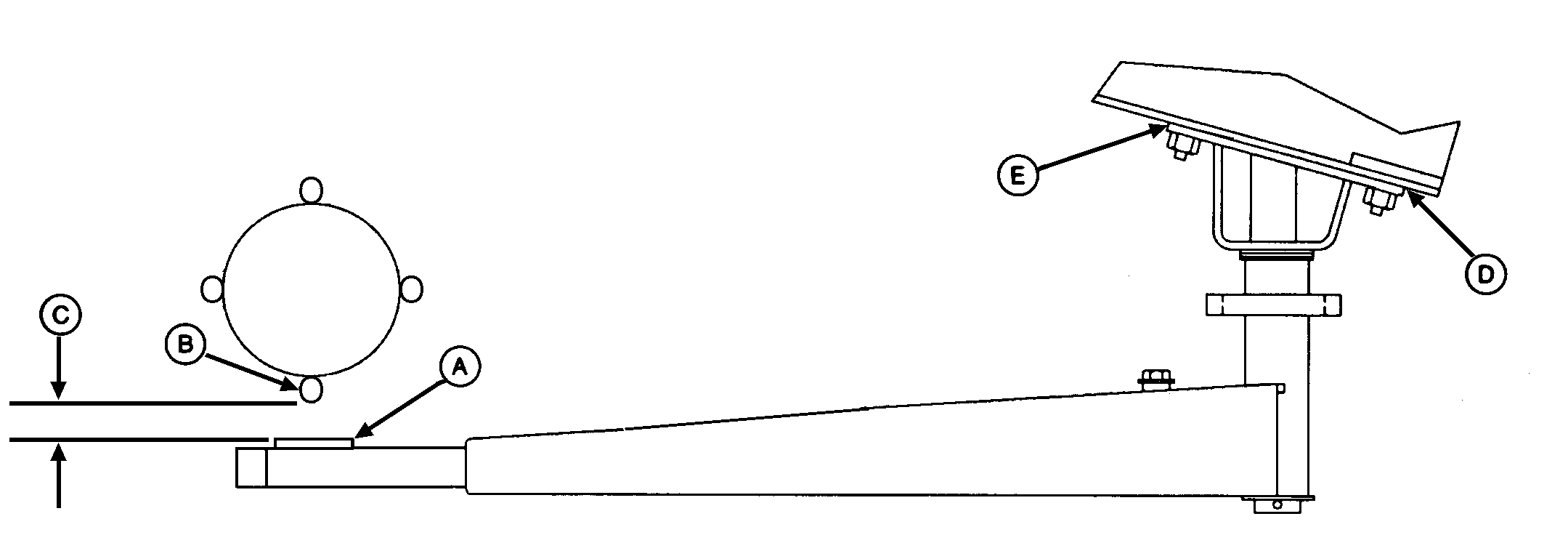

A-Strap
B-Starter Roll Rod

C-Dimension

D-Shim Location

E-Shim Location

10. Turn monitor-controller OFF. Turn tractor key to OFF position. Remove key.

11. Rotate starter roll until starter roll rod (B) is closest to twine arm strap (A).

12. By hand, remove twine arm end play at end of twine arm toward starter roll.

13. Check dimension (C) between starter roll rod (B) and strap (A). Dimension (C) should be to specifications.

Specification

14. If dimension (C) is less than specified, add an equal number of shims at right-hand location (D

15. Turn tractor key to ON position. Turn monitor-controller ON.

16. Press monitor-controller RETRACT key to move twine arm left of center so strap (A) is below starter roll rod (B).

17. Turn monitor-controller OFF. Turn tractor key to OFF position. Remove key.

18. Rotate starter roll until starter roll rod (B) is closest to twine arm strap (A).

19. If dimension (C) is less than specified, add an equal number of shims at the left-hand locations (D) and (E), or remove an equal number of shims at the right-hand locations (D) and (E).

AG,OUMX005,1536 -19-11JUL06-3/5

2. Press monitor-controller RETRACT key to move twine arms until twine arm (A) lightly contacts the cutter link contact tab.

3. Turn monitor-controller OFF. Turn tractor key to OFF position. Remove key.

4. Check dimension (C) between top of twine arm strap and bottom edge of cutter link support (B). Dimension (C) should be within specifications.

Specification

5. If dimension (C) is less than specified and no shims exist at location (D) between support (B) and crossbeam:

• Add an equal number of shims between twine arm support and crossbeam at left-hand locations (E) and (F).

  OR

• Remove an equal number of shims between twine arm support and crossbeam at right-hand locations (E) and (F).

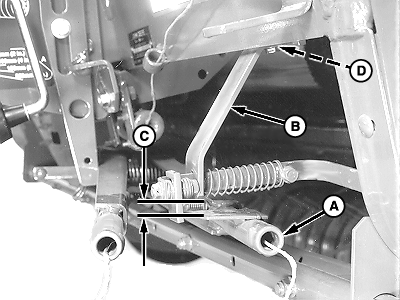

A-Twine Arm
B-Cutter Link Support
C-Dimension

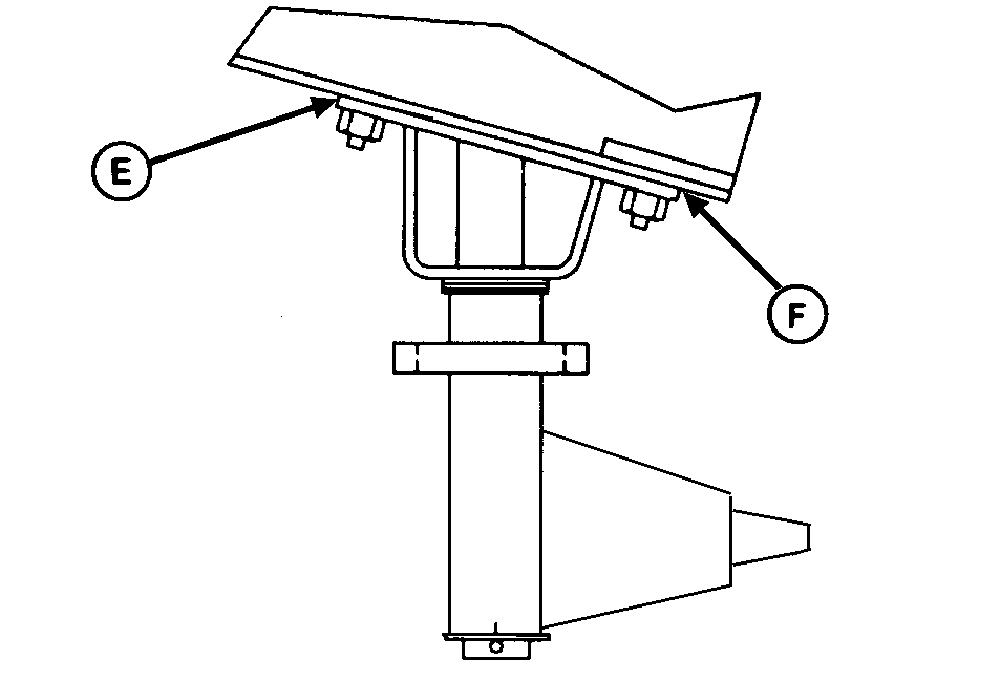

D-Shim Location
E-Shim Location
F-Shim Location

AG,OUMX005,1536 -19-11JUL06-4/5

2. Turn tractor key to ON position. Do not start tractor engine. Press ON/OFF key to turn monitor-controller ON.

3. Press monitor-controller RETRACT key to return twine arms (B) to home position.

4. Turn monitor-controller OFF. Turn tractor key to OFF position. Remove key.

5. Check overlap (C). There should be a minimum overlap between bottom of stop (A) and front twine arm surface to within specifications.

Specification

6. If dimension (C) is less than specified:

• Add an equal number of shims at the right-hand locations (D) and (E).

  OR

• Remove an equal number of shims at the left-hand locations (D) and (E).

2. Adjust twine cutter-to-twine arm. (See ADJUSTING TWINE CUTTER-TO-TWINE ARM in this section.)

3. Install lower drive roll chain.

4. Unlock and close gate.

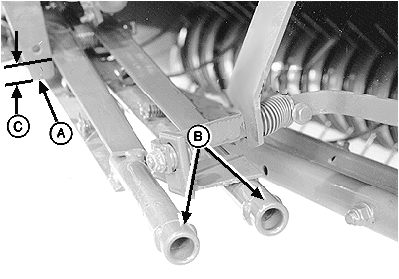

A-Twine Arm Stop
B-Twine Arms
C-Minimum Overlap
D-Shim Location
E-Shim Location

AG,OUMX005,1536 -19-11JUL06-5/5
