Adjusting Gate Latch Stop

NOTE: Door is removed for illustration purposes only.

1. Remove any material buildup between gate and frame.

2. Close and latch gate. Push gate latch (A) forward by hand to remove slack. If distance between gate latch stop (B) and stop pad (C) is not within specifications, shim as necessary using the following instructions:

Specification

Gate Latch Stop-to-Stop Pad -Distance 1-3 mm (1/32-1/8 in.)

a. Loosen cap screw (D). (Shims are slotted so cap screw does not have to be removed.)

NOTE: If proper adjustment cannot be obtained, check for twisted gate by closing gate with tractor engine off. If there is a gap on one side when other side is contacting, see your John Deere dealer for correct procedure to straighten gate.

b. If distance is greater than specified, transfer shims from storage position to shimming position until specification is obtained.

If distance is less than specified, transfer shims from shimming position to storage position until specification is obtained.

c. Center shims and stop pad and tighten cap screw (D). If necessary, repeat procedure on opposite side.

3. Check belt tracking. (See CHECKING BELT TRACKING in this section.)

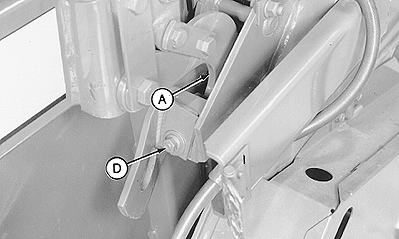

E40982

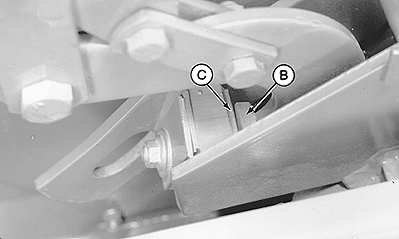

E40983


A-Gate Latch
B-Gate Latch Stop
C-Stop Pad
D-Cap Screw

AG,OUMX005,1539 -19-19MAY06-1/1
