Replacing Bale Diameter Sensor

1. Turn monitor-controller OFF. Turn tractor key to OFF position. Remove key.

NOTE: Sensor is located on right-hand side of tension arm.

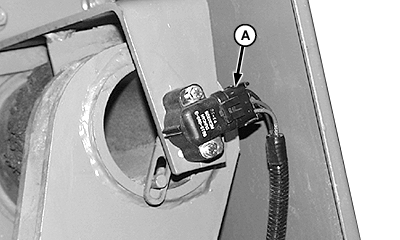

2. Disconnect wiring connector (A).


A-Wiring Connector

E48042

AG,OUMX005,1540 -19-22MAR06-1/3

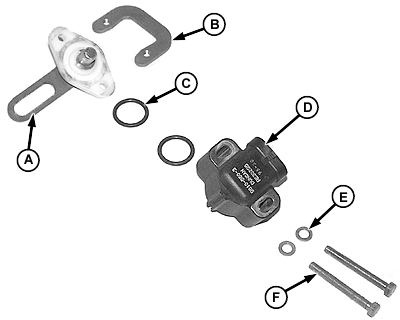

3. Remove parts (A-F). Replace sensor (D).


A-Arm Assembly
B-Mounting Strap
C-O-Ring (2 used)
D-Sensor
E-Washer (2 used)
F-Mounting Screw (2 used)

E48043

AG,OUMX005,1540 -19-22MAR06-2/3

4. Install new sensor in reverse order of removal using the following special instructions:

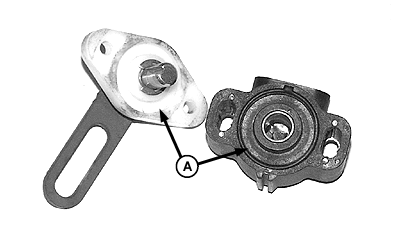

  • Make sure O-rings are inserted in grooves (A).
  • Adjust sensor. (See ADJUSTING BALE DIAMETER SENSOR [CHANNEL 005] in this section.)


A-Grooves

E48044

AG,OUMX005,1540 -19-22MAR06-3/3
