Bale Density Gauge

The gauge indicates the relative pressure within the hydraulic bale tension system while forming a bale.

Turning the bale density knob counterclockwise will cause the needle to move toward the minus sign and make lighter bales.

NOTE: The gauge will not register any change made to the density valve until more hay is fed into the baler.

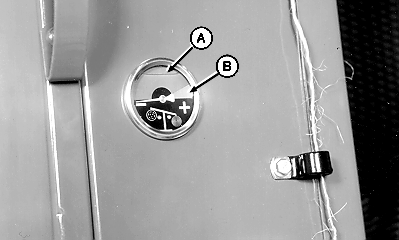

The green band (A) represents normal baler operating pressure range.

If the needle reaches the red band (B):

2. Reduce bale density.

3. Check for faulty gauge or relief valve.

A-Green Band
B-Red Band
