Locking Out Bale Push Bar (If Equipped)

Bale push bar will remain in home position, regardless of gate movement, when in the locked out position.

To lock out push bar:

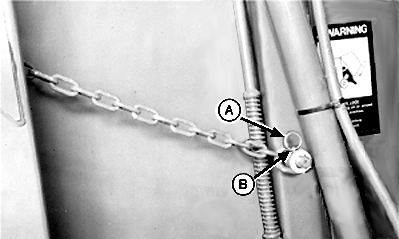

1. Remove retaining ring (A) from pin (B).

2. Remove pin (B) and washer from gate pin.


A-Retaining Ring
B-Pin

E39708

AG,OUO6017,1670 -19-10MAY06-1/3

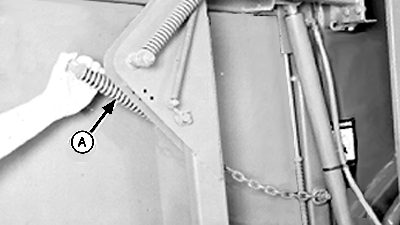

3. Remove tension from chain by rotating spring assembly (A). Remove end chain link from gate pin.

4. Let chain hang free to remove any twists.


A-Spring Assembly

E39709

AG,OUO6017,1670 -19-10MAY06-2/3

IMPORTANT: Both chains must be attached to lockout pins to lock out push bar. Damage can occur to the push bar and gate if one chain is left attached to the gate pin or is unhooked completely.

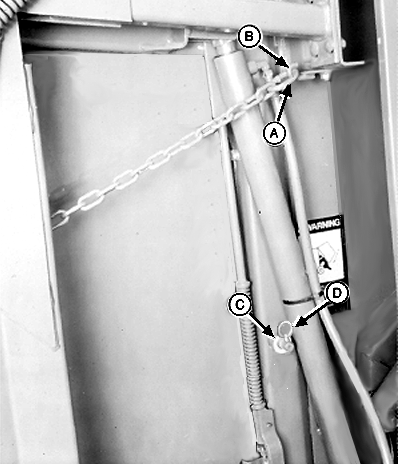

5. Attach the end chain link (A) on lockout hook (B). Release spring assembly.

6. Install washer (C). Put pin UP through gate pin and fasten with retaining ring (D).

7. Repeat on opposite side.

NOTE: If operating the baler with push bar locked out, it will be necessary to back up baler before ejecting the bale.


A-Chain Link
B-Lockout Hook
C-Washer
D-Retaining Ring

E39710

AG,OUO6017,1670 -19-10MAY06-3/3
