Servicing Upper Chain and Idler

1. Loosen nut (A) to release spring tension.

2. Service chain (B), idler (C), and spring (D).

3. Assemble in reverse order of disassembly using the following special instructions:

  • Adjust upper drive roll chain. (See ADJUSTING UPPER DRIVE ROLL CHAIN in this section.)

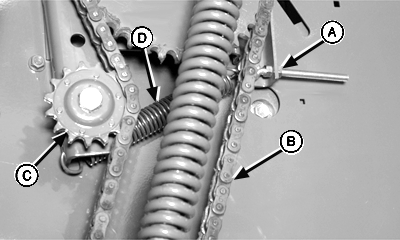

E45785


A-Nut
B-Chain
C-Idler
D-Spring

AG,OUO6017,1718 -19-17MAY06-1/1
