OMFH309531: 468, 468 Silage Special, and 568 Round Balers, Block File: AG_OUO6059_179_19

1. Remove four round head bolts and top belt shield (A) with SMV sign.

2. Wrap chain hoist around cross frame member and raise gate.

3. When finished, replace shield and SMV sign.

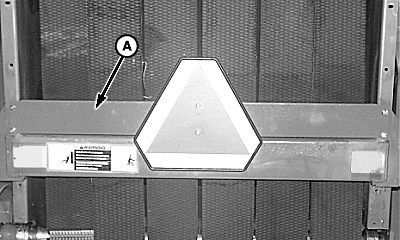

A-Shield

AG,OUO6059,179 -19-22JUN00-1/1
