Tractor Convenience OutletJohn Deere 55 Series, 6000, 7000, or 8000 modelsPlug BaleTrak ™ Pro into the standard convenience outlet (A) located on side console.
|
|
|
BaleTrak is a trademark of Deere & Company | AG,OUO6059,202 -19-04NOV08-1/3 |
|
Tractor models without a convenience power outlet

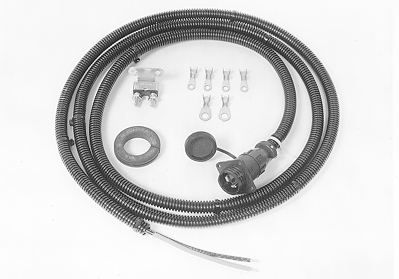

Order convenience outlet kit AE50549 from your John Deere dealer. Kit consists of 12 gauge wires and a circuit breaker. When installing kit, attach power and ground wires directly to battery terminal clamp bolts, only. IMPORTANT: Monitor-controller is polarity sensitive. Red lead from monitor-controller power input MUST be installed on positive (+) side of a 12 volt system. Failure to do so will cause monitor-controller to not function. |
|
AG,OUO6059,202 -19-04NOV08-2/3 |
|
Other tractor models with a convenience power outlet

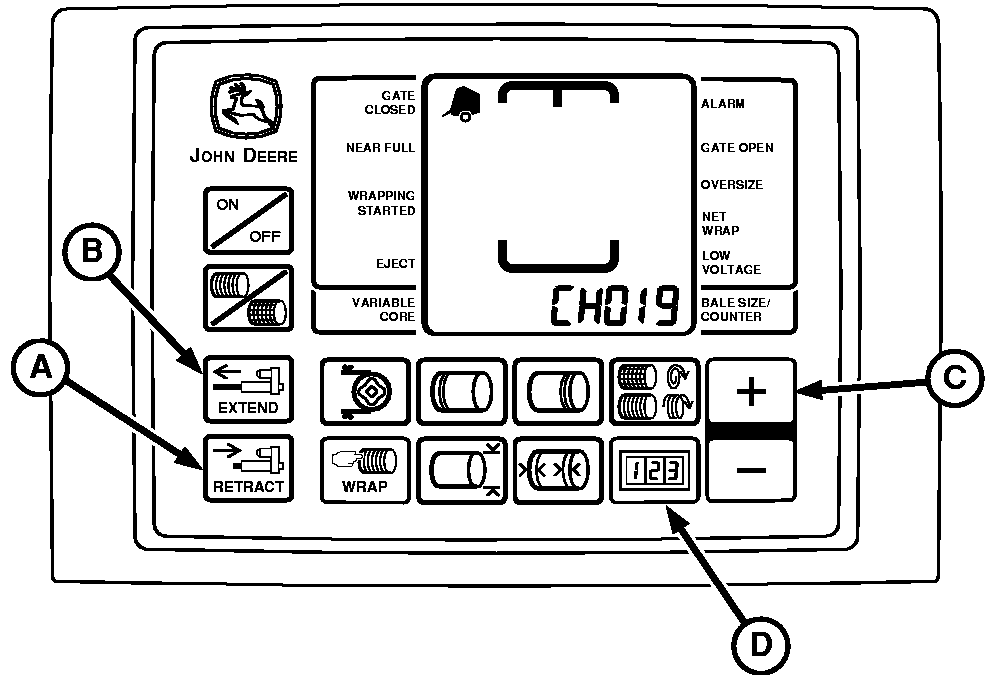

Complete the following check to determine if the convenience power outlet provides adequate power for the BaleTrak™ Pro system. With tractor engine running and monitor in twine mode: 1. Press and hold COUNTER key (D) while turning on monitor. Continue to hold COUNTER key and press PLUS key (C) until CH019 appears in the digital display.2. Release COUNTER key. View voltage readout. 3. Using the EXTEND key (B), extend twine actuator slightly. 4. Push and hold RETRACT key (A) until actuator stalls out in cutoff position and note voltage displayed. IMPORTANT: Monitor-controller is polarity sensitive. Red lead from monitor-controller power input MUST be installed on positive (+) side of a 12 volt system. NOTE: If a convenience outlet is needed, order convenience outlet (AE50549) from your John Deere dealer. 5. If voltage is less than 9.7, install convenience outlet kit. Attach power and ground wires directly to battery terminal clamp bolts, only. |
|
AG,OUO6059,202 -19-04NOV08-3/3 |
