Main PTO Driveline Splined Telescoping Members (Assembling, If Necessary)

1. Wipe excess grease from shaft and sleeve to see timing marks.

NOTE: A spot of weld (B) on inner driveline is used to mark alignment.

2. Align guides (missing section of spline, (A) on outer driveline with spot of weld (B) on inner driveline. Install inner driveline assembly into outer driveline section.

3. Assemble telescoping members together.

4. Apply multipurpose grease, or equivalent, to lubrication fitting at sleeve before operating. (See Lubrication and Maintenance section.)

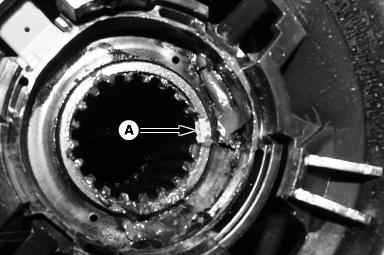

A-Alignment Guide, Missing Section of Spline (outer)

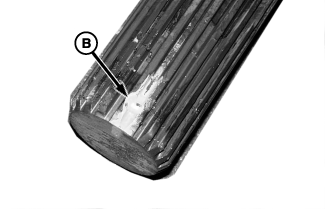

B-Alignment Guide, Spot of Weld (inner)
