Tail/Warning Light Plug to Tractor

NOTE: Field installation of Seven-Terminal Auxiliary Electric Kit is required if towing tractor is not equipped with an electrical outlet. Kit may be ordered through your John Deere dealer.

Make sure baler tail and warning lights operate with tractor tail and warning lights and turn signals.

Connect tail/warning light plug (A) to seven-terminal outlet on tractor. Check tail/warning light function. (See LIGHTING ENHANCEMENT MODULE OPERATION in Transporting section.)

Terminal Circuit Function Wire Color
1 100 Ground Black
2   Open
3 104 Left-Hand Turn/Warning Light Yellow
4   Open
5 105 Right-Hand Turn/Warning Light Green
6 101 Tail Lights Brown
7   Open


RW55134

Tractor Seven-Terminal Outlet

E47631

Baler Tail/Warning Light Plug

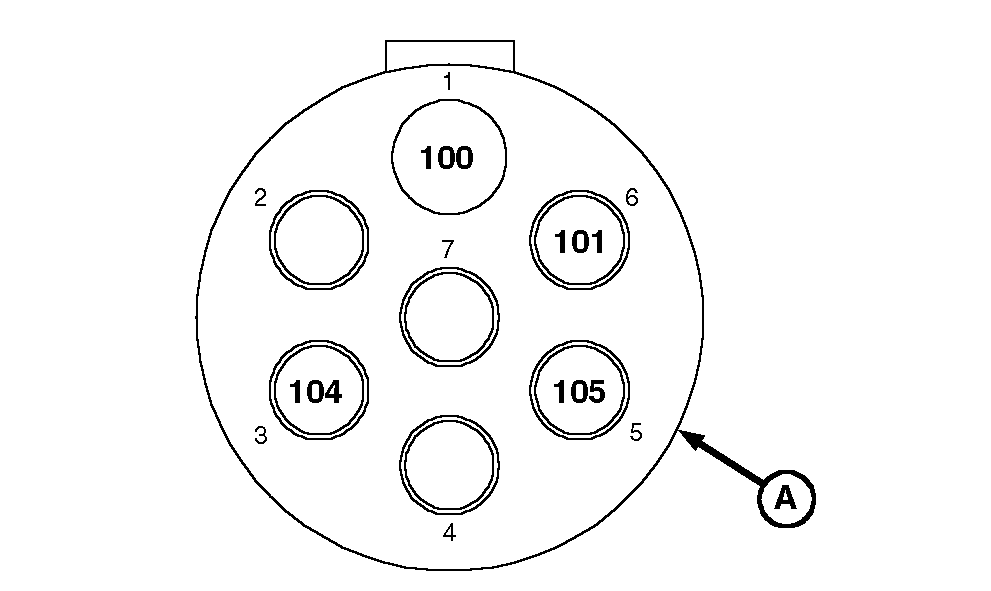

A-Baler Tail/Warning Light Plug
