Twine Arm Timing (568)

CAUTION: Twine arms can move unexpectedly. Keep hands out of twine arm path to avoid crushing. Turn off power BEFORE servicing or adjusting twine arms or twine cutter mechanism.

Stay out of the path of twine arms at all times when power to twine arms is ON.

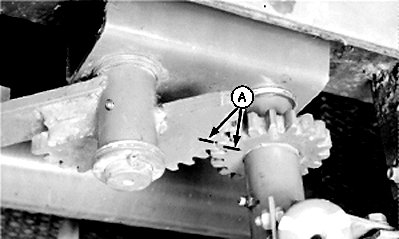

When replacing or servicing twine arm or drive gear, make sure timing marks (A) are lined up as shown.

If equipped with MegaTooth ™ pickup; Rotate curtains out of the way to view timing marks.

A-Timing Marks
