Engaging Bale Push Bar (If Equipped)

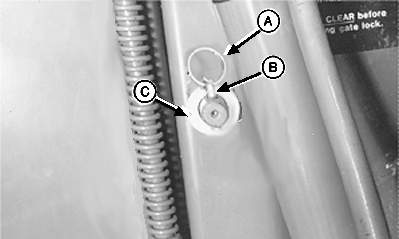

1. Remove retaining ring (A) from pin (B).

2. Remove pin (B) and washer (C) from gate pin.


A-Retaining Ring
B-Pin
C-Washer

E39712

AG,OUO6059,266 -19-10MAY06-1/3

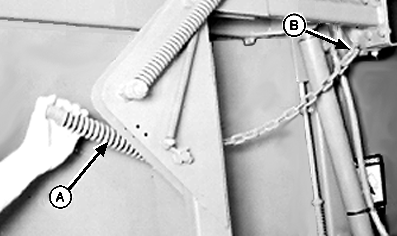

3. Remove tension from chain by rotating the spring assembly (A) to the rear. Remove end chain link from lockout hook (B).

4. Let chain hang free to remove any twists.


A-Spring Assembly
B-Lockout Hook

E39706

AG,OUO6059,266 -19-10MAY06-2/3

IMPORTANT: Both chains must be attached to gate pins before operating the push bar. Damage can occur to the push bar and gate if one chain is left in the lockout position or is unhooked completely.

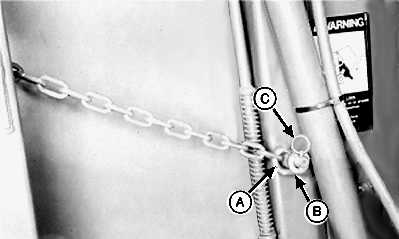

5. Attach end chain link (A) on gate pin.

6. Install washer (B). Put pin UP through gate pin and fasten with retaining ring (C).

7. Repeat on opposite side.

E39707


A-End Chain Link
B-Washer
C-Retaining Ring

AG,OUO6059,266 -19-10MAY06-3/3
