Gear Case Oil

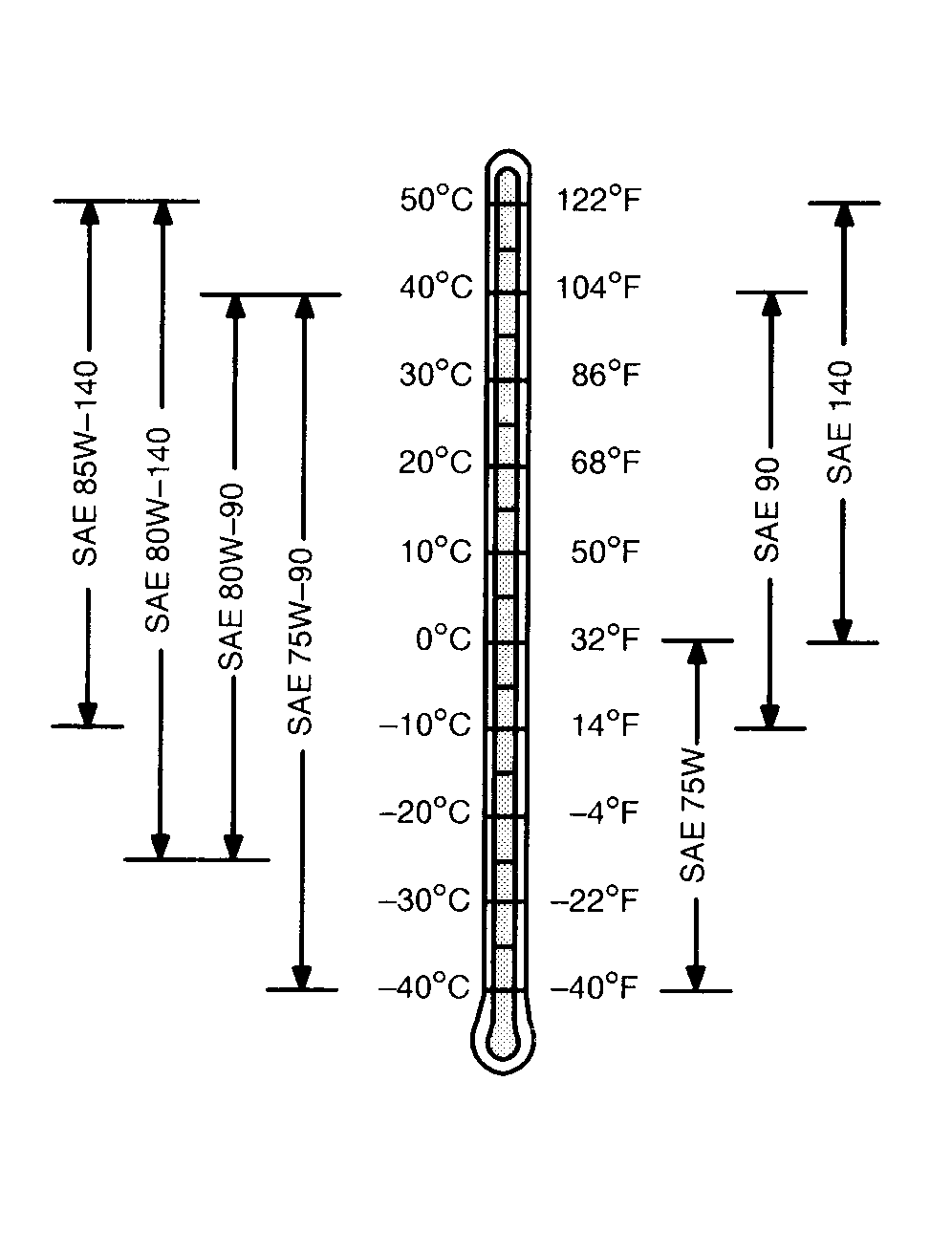

Use oil viscosity based on the expected air temperature range during the period between oil changes.

The following oils are preferred:

  • John Deere GL-5 GEAR LUBRICANT
  • John Deere EXTREME-GARD ™

Other oils may be used if they meet API Service Classification GL-5.

TS1653

EXTREME-GARD is a trademark of Deere & Company.

EX,348N,GA1 -19-17MAY06-1/1
