Net Wrap, Loading Roll into Baler Storage Location

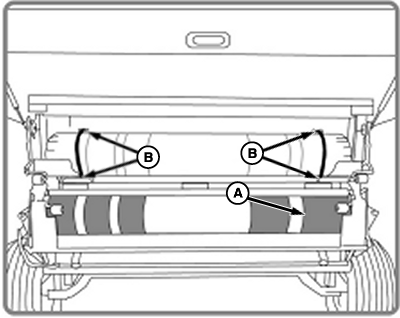

1. Load roll with wide green stripe (A) on right hand side, so you do not have to turn it end-for-end later when lowering it into operating position.

2. To secure roll, stretch rubber straps (B) and hook them to support brackets on right and left hand sides.

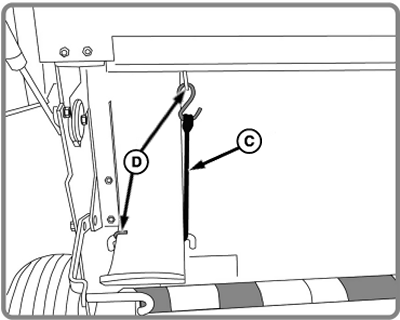

3. When storage location is empty, make sure that straps (C) are secured to support brackets (D) and not left to hang free.


A-Wide Green Stripe
B-Straps
C-Straps
D-Brackets

E53024
E53025

OUO6085,00001A8 -19-07APR06-1/2

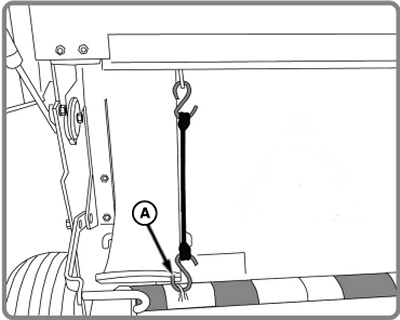

IMPORTANT: If strap is allowed to hang free, S-hook (A) on free end can snag the net and ruin several hundred feet on working roll.


A-Hook (Hanging Free)

E53026

OUO6085,00001A8 -19-07APR06-2/2
