Every 10 Hours

Chains

causym CAUTION: To help prevent injury, do not lubricate chains with machine running.

Liberally apply SAE 30 or heavier oil to chains every 10 hours of operation.

Lubricate chains immediately after operation when the chains are still warm. Let the machine stand idle for a short period to ensure effective oil penetration, resulting in longer chain life.

TS284

OUO6085,00003C4 -19-17MAY06-1/6

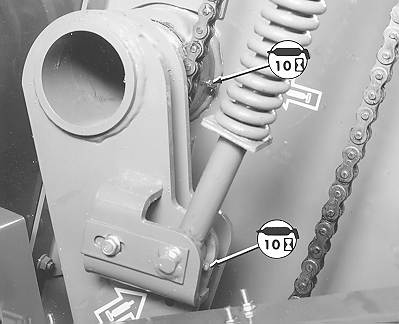

Tension Arm Pivots
E39579

OUO6085,00003C4 -19-17MAY06-2/6

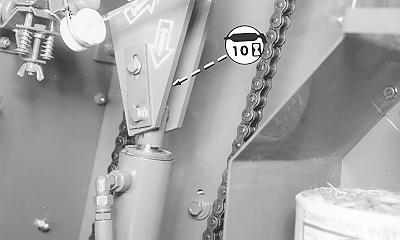

Tension Cylinder Rods
E39583

OUO6085,00003C4 -19-17MAY06-3/6

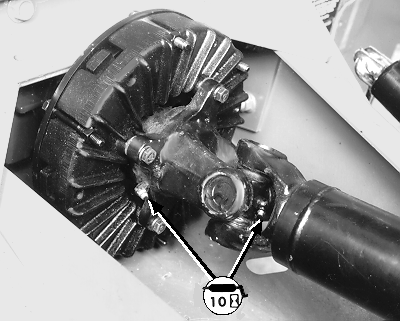

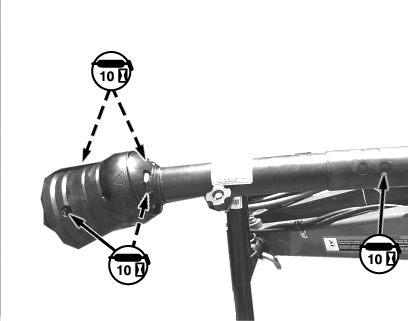

PTO Driveline
E54341
E39734

OUO6085,00003C4 -19-17MAY06-4/6

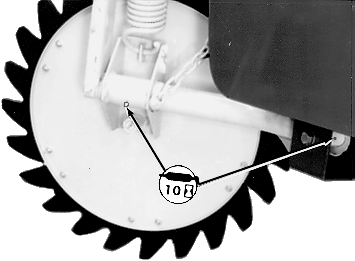

Gathering Wheels and Support Pivot (If Equipped)
E39589

OUO6085,00003C4 -19-17MAY06-5/6

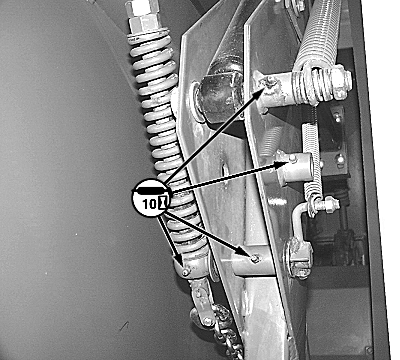

Push Bar Shock Absorber and Spring Bolt (If Equipped)
E48339

OUO6085,00003C4 -19-17MAY06-6/6
