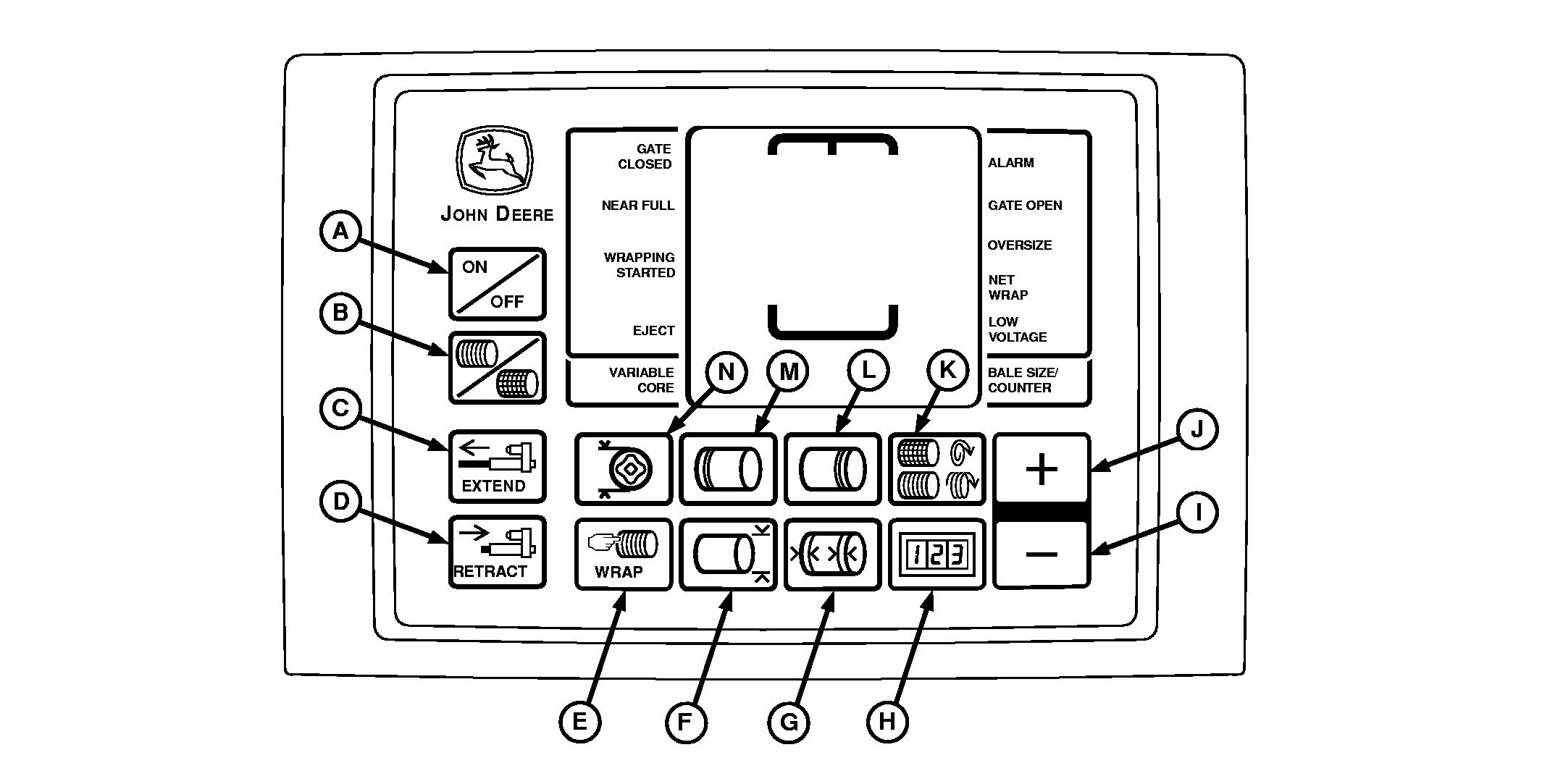

A-Monitor ON/OFF Switch
B-Selector Switch (Twine/Net¹)
C-Actuator Extend-Manual (Twine Only²)

D-Actuator Retract-Manual (Twine Only²)
E-Wrap Cycle-Manual Start
F-Bale Diameter
G-End Wrap Distance (Twine Only)

H-Bale Counters
I-Minus Key
J-Plus Key
K-Twine Spacing/Number of Net Wraps

L-Number of Right-Hand End Wraps (Twine Only)
M-Number of Left-Hand End Wraps (Twine Only)
N-Variable Core Diameter¹

BaleTrak is a trademark of Deere & Company.

¹Optional equipment.

²Net actuator does not move when EXTEND/RETRACT keys are pressed in Net-mode. To move net actuator for servicing net unit, see TEST TWINE OR NET WRAP ACTUATOR CURRENT (CHANNEL 018), or see TEST TWINE OR NET WRAP ACTUATOR VOLTAGE (CHANNEL 019) in this section.
