Preparing Baler for Transport

CAUTION: To avoid injury to others, transport baler with bale chamber empty.

1. Empty bale chamber before transporting.

2. Close gate completely.

3. Raise pickup fully.

4. Raise gathering wheels, if equipped.

OUO6085,0000517 -19-07JUN07-1/3

CAUTION: Prevent collisions between other road users, slow moving tractors with attachments or towed equipment, and self-propelled machines on public roads. Frequently check for traffic from the rear, especially in turns, and use hand signals or turn signal lights.

Use headlights, flashing warning lights, and turn signals day and night. Follow local regulations for equipment lighting and marking. Keep lighting and marking visible and in good working order. Replace or repair lighting and marking that has been damaged or lost.

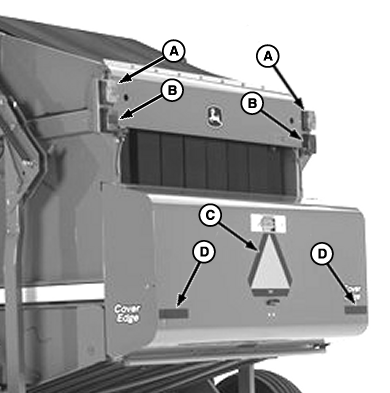

5. Be sure SMV emblem (C), turn/warning lights (A), tail lights (B) and reflectors (D) are clean and visible. Make sure baler turn/warning lights operate with tractor warning lights and turn signals.

A-Turn/Warning Lights (Amber)
B-Tail Lights (Red)
C-SMV Emblem
D-Reflectors

OUO6085,0000517 -19-07JUN07-2/3

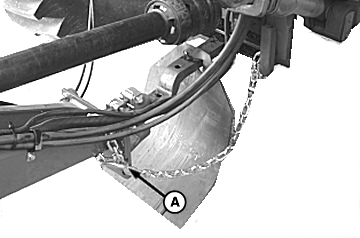

CAUTION: A safety chain (A) will help control drawn equipment should it accidentally separate from the drawbar. Using the appropriate adapter parts, attach the chain (A) to the tractor drawbar support or other specified anchor location. Provide only enough slack in the chain to permit turning. Do not use safety chain for towing.

6. If transporting machine behind a tractor without connecting PTO driveline, remove PTO driveline assembly. Transport parts in another vehicle to prevent possible loss, damage, and contamination to driveline assembly.

A-Safety Chain

OUO6085,0000517 -19-07JUN07-3/3
