Removing Compressor Rack Assembly (MegaWide™ Plus)

1. Remove two round-head bolts (B) from rubber strap. Do on opposite side of baler.

2. Remove two round-head bolts (A) from bracket. Do on opposite side of baler.

3. Carefully lift and remove compressor tube (C) and rods.

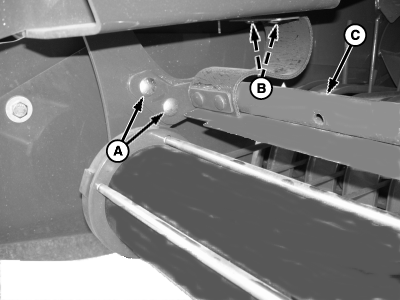

A-Round-Head Bolt and Nut (2 on each side)
B-Round-Head Bolt and Nut (2 on each side)
C-Compressor Tube

E54546

OUO6085,000058C -19-06NOV08-1/1
