Installing Compressor Rack Assembly (Regular and MegaTooth)

1. Install compressor rack (A) in left-hand bracket (B).


A-Compressor Rack
B-Left-hand Bracket

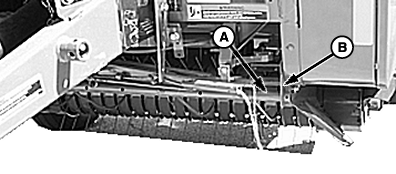

E54676

OUO6085,0000593 -19-06NOV08-1/2

2. Lift right-hand end and slide compressor rack (A) into bracket (B).

3. Install cap screw and lock nut (C). Install cotter pin (D) into right-hand end of compressor rack tube.

NOTE: Make sure compressor rods do not interfere with twine arm. Adjust individual rods, as necessary, or adjust compressor rack assembly for clearance.

4. Adjust to desired operating height. Tighten lock nut (C). (See ADJUSTING COMPRESSOR RACK ASSEMBLY in this section.)

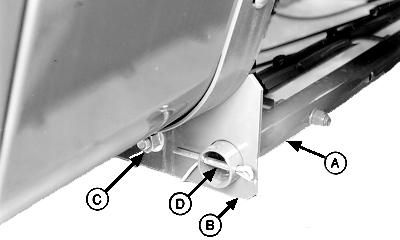

E40061

MEGATOOTH™ Pickup Shown


A-Compressor Rack
B-Bracket
C-Lock Nut
D-Cotter Pin
