Removing and Installing Roller Baffle

NOTE: Roller is heavy. Use care when removing locating pins from bracket. Support first end of roller before removing locating pins from opposite side.

2. Carefully, remove locating pins (A) from slots (B). Lower end of roller to a support while removing locating pins from opposite side.

3. Remove locating pins from other side and carefully remove roller baffle.

NOTE: Support roller so each end will be approximately the same height.

1. Install roller baffle locating pins (A) into slots (B) on support bracket. Repeat on opposite side.

2. Fasten each end of roller baffle with flange-head bolt (C).

If an adjustment is needed, see ADJUSTING ROLLER BAFFLE HEIGHT in this section.

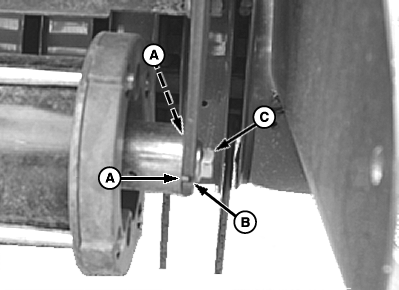

A-Locating Pins (2 one each side)
B-Slot (Front and Back of Bracket)
C-Flange-Head Bolt

PP98408,000007A -19-27MAY09-1/1
