Adjusting Roller Baffle Height

IMPORTANT: Do not remove plastic tie bands from pickup baffle roller. If tie bands are removed, crop could wrap around roller between rods and tube.

Replace missing tie bands as soon as possible.

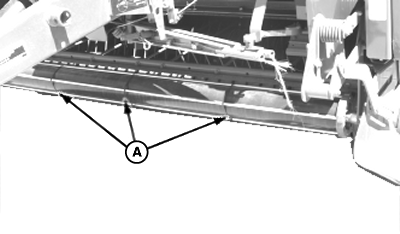

A-Tie Bands (2 used on 468, 468 Silage Special)(3 used on 568)

E54551

PP98408,000007B -19-27MAY09-1/2

1. Baffle height is adjusted by removing two round-head bolts (A) and moving top end of rubber belt forward, or to the rear.

2. To increase baffle height from ground, move belt (B) to rear holes. Fasten with round-head bolts (A).

3. To decrease baffle height from ground, move belt (B) to front holes. Fasten with round-head bolts (A).

4. Repeat Steps 2 and 3 on opposite side.

5. Adjust clearance between compressor rods and rotor strippers. (See ADJUSTING COMPRESSOR RODS in this section.)

E54550

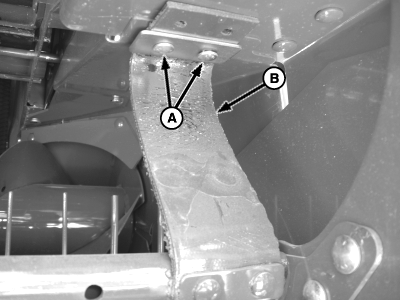

A-Round-Head Bolts (2 on each side)
B-Rubber Belt

PP98408,000007B -19-27MAY09-2/2
