Removing and Installing Net Wrap V-Belt

2. Start tractor and raise tension arm fully using tractor hydraulics.

3. Turn tractor key to off position. Remove key.

4. Disconnect monitor-controller power plug from tractor convenience outlet.

5. Open net wrap cover.

6. Put support under drive roll to help support weight of roll.

PP98408,0000086 -19-27MAY09-1/2

8. Remove cap screw (C) and shield (D).

9. Raise brake lever and place on tab.

10. Remove cap screw, washer (F) and sheave (H).

11. Remove and replace belt (G).

12. Install in reverse of removal using the following special instructions:

• Hold left-hand end of roll rearward while tightening cap screw (C).

13. Check and if necessary, adjust v-belt idler. (See CHECKING AND ADJUSTING NET WRAP V-BELT IDLER TENSION in this section.)

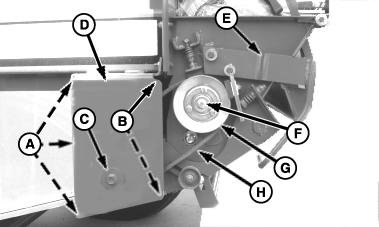

A-Cap Screws
B-Cap Screws and Nuts
C-Cap Screw
D-Shield
E-Brake Lever
F-Cap Screw and Washer
G-Sheave
H-Belt

PP98408,0000086 -19-27MAY09-2/2
