Slip Clutch Alert PTO Speed Sensor
(Channel 204) (Turning On and Off)
PTO speed sensor can be turned OFF or ON by accessing channel 204.
Entire slip clutch alert feature can be turned off by changing value to "0".
NOTE:
Both channels 204 and 205 must be turned ON to use speed compensation and slip clutch alert features.
Turning Feature On and Off:
1.
Turn tractor key to ON position. Do not start tractor.
2.

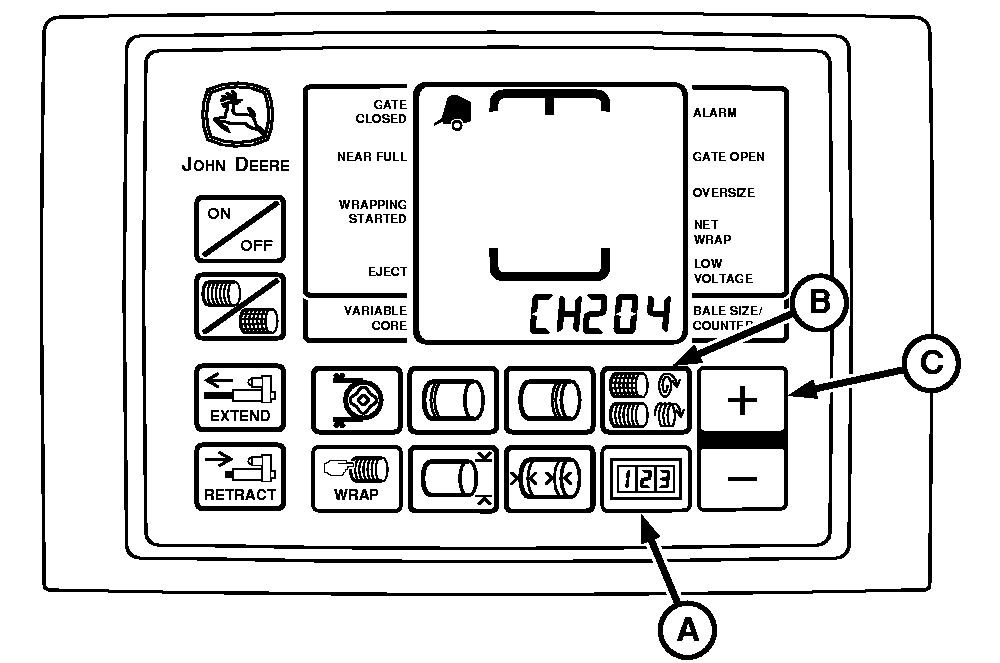

Press and hold both COUNTER key (A) and NUMBER OF WRAPS key (B) while turning monitor-controller to ON.
CH201
should be displayed.
3.
Release both keys. Baler model is displayed.
4.
Press and hold COUNTER key (A) and press the PLUS key (C) until
CH204
is shown in display.
5.
Release COUNTER key (A).
6.
To turn PTO speed sensor ON, press PLUS key (C) until baler PTO speed
540
or
1000
is shown in display. To turn PTO sensor OFF, press the PLUS key (C) until
value is displayed.
7.
Release PLUS key (C).
8.
Turn monitor-controller OFF to enter setting into memory.
9.
Turn monitor-controller ON to verify baler model number. Model number is displayed approximately 2 seconds. If displayed baler model is incorrect, see BALER MODEL PROGRAM (CHANNEL 201) in this section.
10.
Turn tractor key to OFF position and remove key.
|
