Adjusting Bale Shape Sensor-In Shop Procedure (Channels 007 and 009)

NOTE: Number of bale shape indicator "bars" displayed is 24.

Bale shape gauge strap (A) is available through your John Deere dealer.

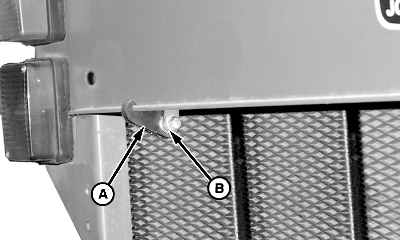

1. If bale shape gauge strap (A) is used:

  • Install strap (A) over roller bearing (B).
  • Attach end of strap over baler frame cross-member. Make sure lip of cross-member is seated on strap.
E48271

Left-Hand Side Shown


A-Bale Shape Gauge Strap
B-Bearing

PP98408,00000B7 -19-23SEP09-1/5

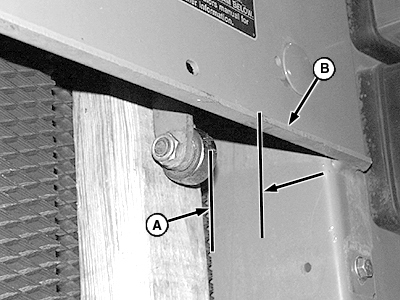

2. If bale shape gauge strap is not used:

  • Put a board approximately 51 x 102 x 457 mm (2 x 4 x 18 in.) between roller bearing and belt as shown.
  • Position board to hold bale shape sender arm so rear of roller bearing is 62 mm (2-7/16 in.) (A) from rear edge of panel (B).


A-Dimension
B-Rear Edge of Panel

E47620

Right-Hand Side Shown

PP98408,00000B7 -19-23SEP09-2/5

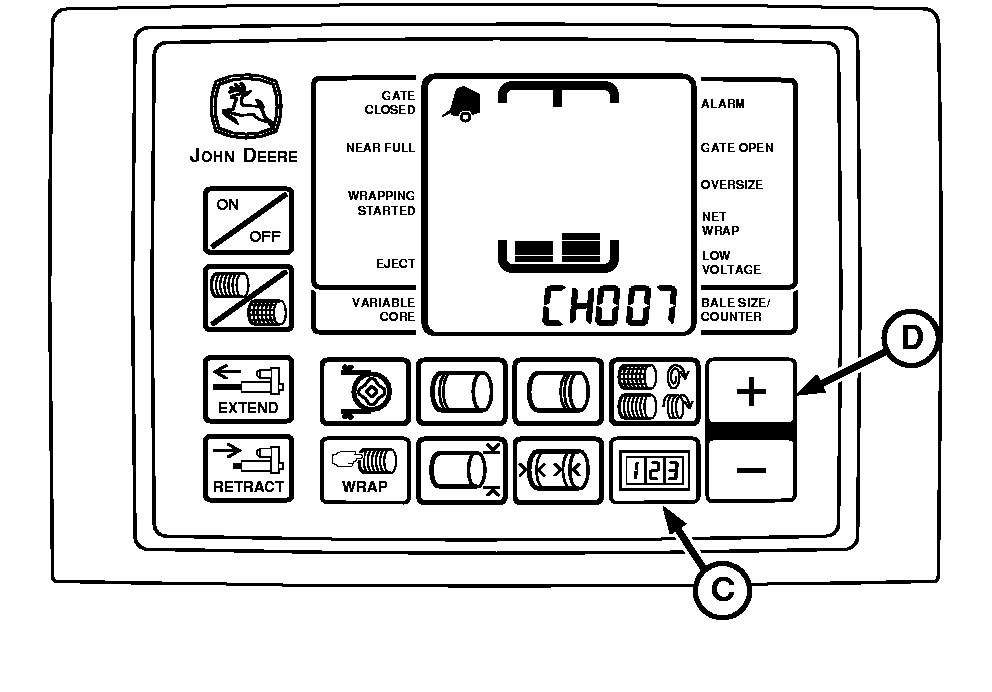

3. Press and hold COUNTER key (C) while turning monitor-controller ON.

4. Continue to hold COUNTER key (C) and press PLUS key (D) until:

  • CH007 is displayed to adjust right side
  • CH009 is displayed to adjust left side

5. Release COUNTER key (C) to display sensor value.

6. If buzzer does not emit a "setup tone" and display readout is above or below setup value of 176 , bale shape sensor is out of adjustment.

E52527


C-COUNTER Key
D-PLUS Key

PP98408,00000B7 -19-23SEP09-3/5

7. To adjust sensor, remove rolling thread cap screw (B). Rotate shield (A) away from baler.


A-Shield
B-Rolling Thread Cap Screw

E47621

Right-Hand Side Shown

PP98408,00000B7 -19-23SEP09-4/5

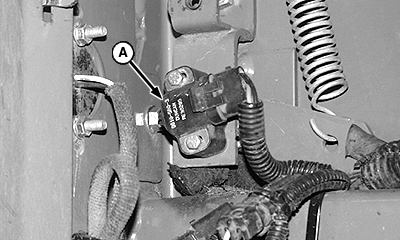

8. Loosen sensor mounting hardware and rotate sensor (A) until buzzer emits a tone and 176 is displayed. Tighten sensor mounting hardware.

9. Install shield by rotating toward baler and fastening with mounting cap screw.

10. Repeat procedure to adjust opposite side. Use appropriate channel for adjustment.


A-Bale Shape Sensor

E47622

PP98408,00000B7 -19-23SEP09-5/5
