Adjusting Gate Latch Proximity Switches

1. Close and latch gate. ( Gate cylinders should be fully retracted. )

2. Loosen bolts (A) and move switch so it is parallel with mounting window edge and correct distance (D) from latch bar (C).

3. Ensure proximity switch (B) is even distance from top and bottom of latch bar (C). Set distance to specification.

Specification

Proximity Switch -Distance 3.0 mm (1/8 in.)

4. Repeat on opposite side.

5. Confirm switch operation by taking test readings using monitor-controller. (See TESTING GATE LATCH AND OVERSIZE BALE SWITCHES-MONITOR ASSISTED [CHANNELS 013, 014 AND 015] in this section.)

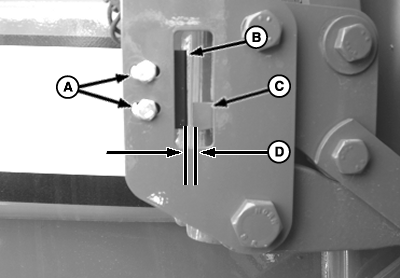

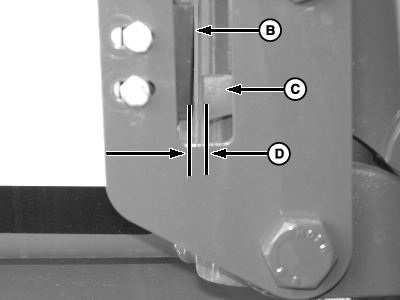

A-Bolts
B-Proximity Switch
C-Latch Bar
D-Dimension, 3.0 mm (1/8 in.)

E54646
E54648

PP98408,00000BD -19-12MAY09-1/1
