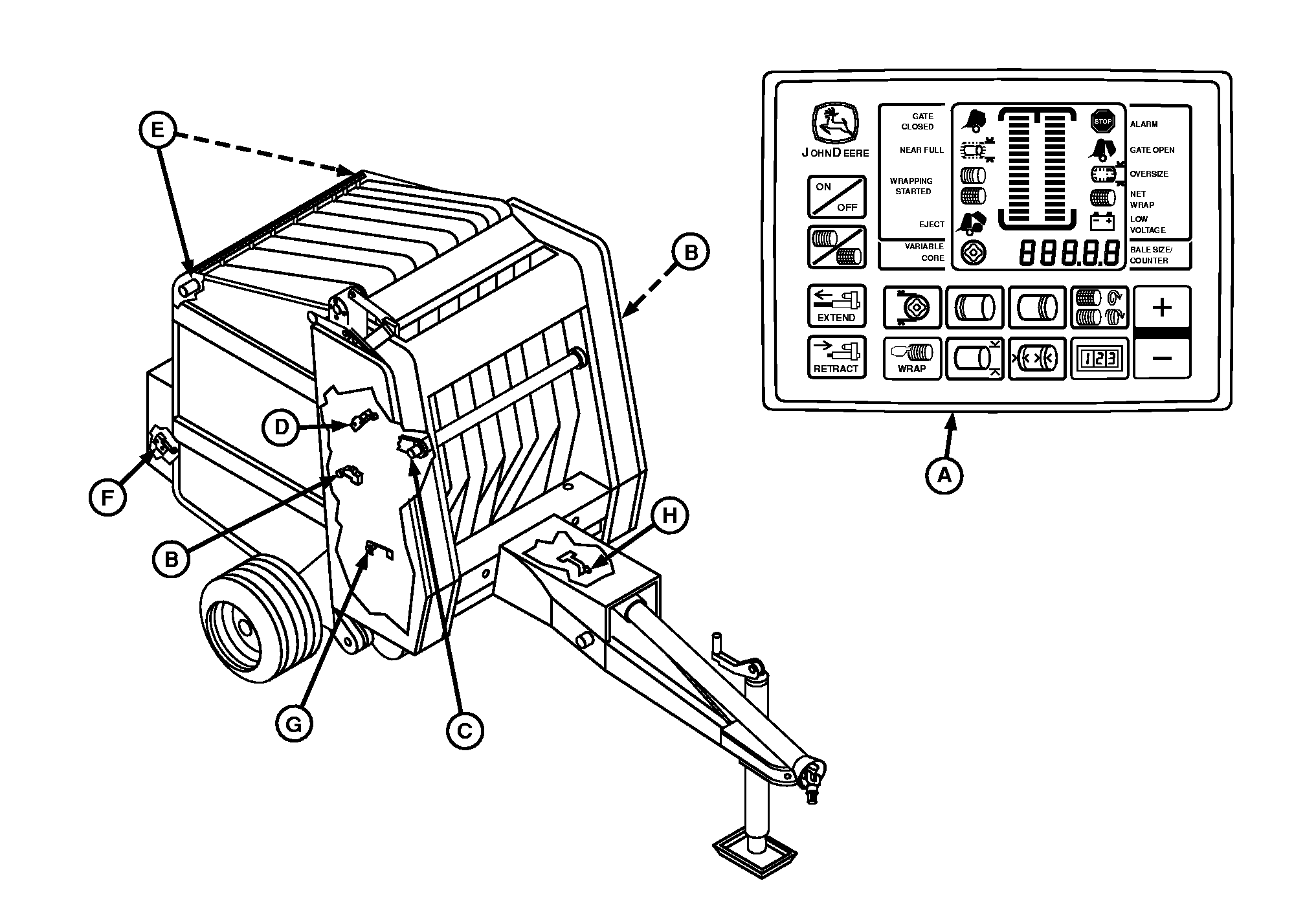

A-Monitor-Controller (located on tractor)
B-Gate Latch Switches

C-Bale Diameter Sensor
D-Oversize Bale Switch
E-Bale Shape Sensors

F-Net Wrap Switch (if equipped)
G-Pickup Slip Clutch Alert Sensor

H-PTO Slip Clutch Alert Sensor
