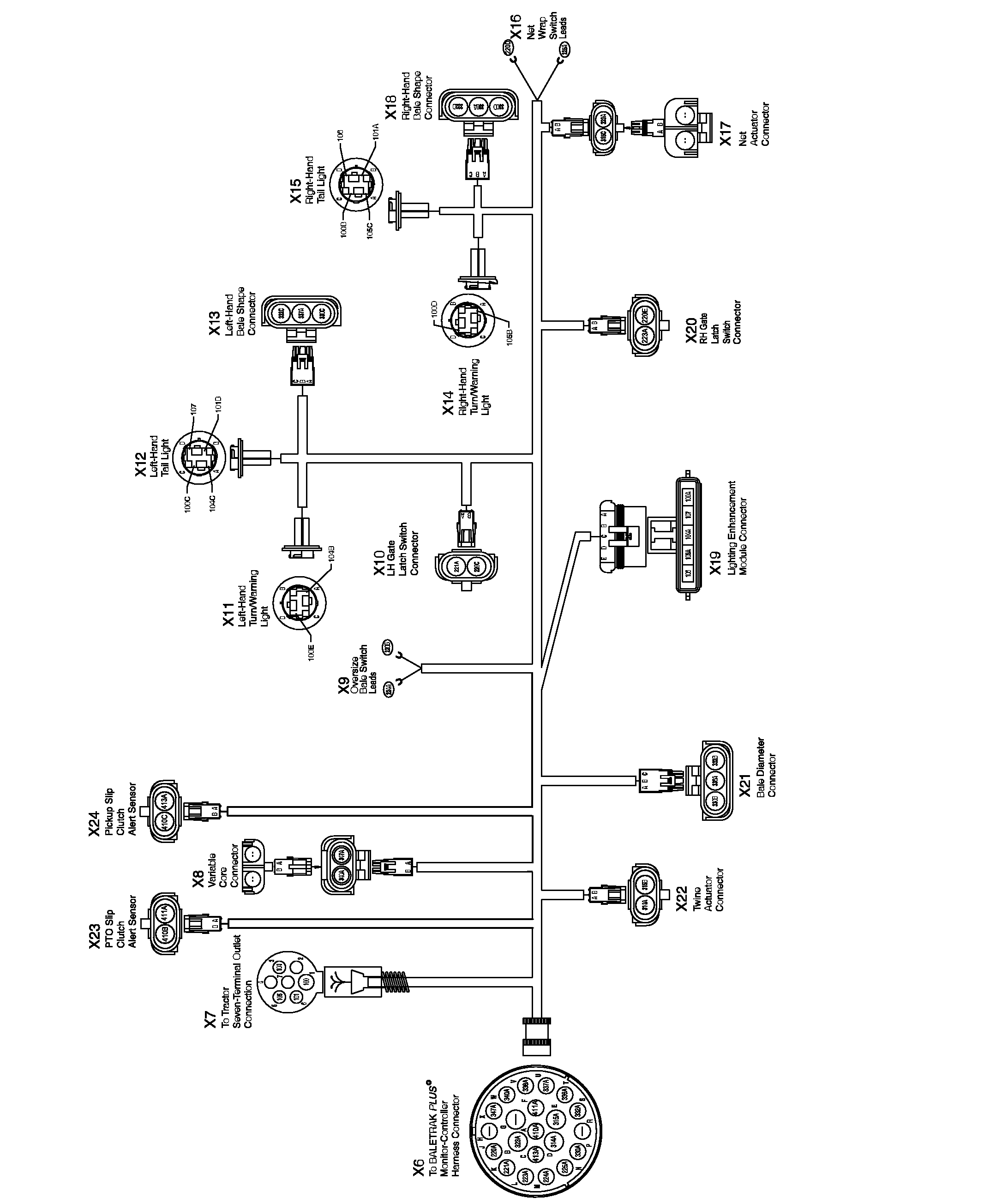

Wiring Harness Diagram-Baler

E57251

PP98408,00000F1 -19-24JUN09-1/4

X6 To BaleTrak™ Pro Monitor-Controller Harness Connector
Terminal Circuit Function Wire Color
A 410A Open
B 323A Net Actuator Orange
C 413A Open
D 314A Twine Actuator Yellow
E 315A Twine/Net Actuator Green
F 411A Open
G   Open
H   Open
J 220A Ground Black
K 221A Left Gate Latch Switch Brown
L 223A Right Gate Latch Switch Orange
M 224A Oversize Bale Switch Yellow
N 225A Net Switch Green
P 330A Ground Black
R   Open
S 332A Sensor Red
T 336A Bale Size Sensor Blue
U 337A Left Bale Shape Sensor Purple
V 338A Right Bale Shape Sensor Gray
W 340A Ground Black
X 347A Power Purple



X7 To Tractor Seven-Terminal Outlet Connector
Terminal Circuit Function Wire Color
1 100 Ground Black
2   Open
3 104 Left-hand Turn/Warning Light Yellow
4   Open
5 105 Right-hand Turn/Warning Light Green
6 101 Tail Lights Brown
7   Open



X8 Variable Core Connector
Terminal Circuit Function Wire Color
A 347A Power Purple
B 340A Ground Black



X9 Oversize Bale Switch Leads
Terminal Circuit Function Wire Color
- 224A Power Yellow
- 220B Ground Black



X10 Left-Hand Gate Latch Switch Connector
Terminal Circuit Function Wire Color
- 220C Ground Black
- 221A Power Brown



X11 Left-Hand Turn/Warning Light Connector
Terminal Circuit Function Wire Color
A 104B Power Yellow
B   Open
C   Open
D 100E Ground Black



X12 Left-Hand Tail Light Connector
Terminal Circuit Function Wire Color
A 104C Left-hand Turn/Warning Light Yellow
B 101B Left-hand Tail Lamp Brown
C 100C Ground Black
D 107 Left-hand Flasher Orange



X13 Left-Hand Bale Shape Connector
Terminal Circuit Function Wire Color
A 330C Sensor Black
B 337A Left Bale Shape Sensor Purple
C 332C Ground Red



PP98408,00000F1 -19-24JUN09-2/4

X14 Right-Hand Turn/Warning Light Connector
Terminal Circuit Function Wire Color
A 105B Power Green
B   Open
C   Open
D 100D Ground Black



X15 Right-Hand Tail Light Connector
Terminal Circuit Function Wire Color
A 105C Right-hand Turn/Warning Light Green
B 101A Right-hand Tail Lamp Brown
C 100B Ground Black
D 106 Right-hand Flasher Violet



X16 Net Wrap Switch Leads
Terminal Circuit Function Wire Color
- 220D Ground Black
- 225A Power Green



X17 Net Actuator Connector
Terminal Circuit Function Wire Color
A 315C Net Actuator Green
B 323A Net Actuator Orange



X18 Right-Hand Bale Shape Connector
Terminal Circuit Function Wire Color
A 330D Ground Black
B 338A Right Bale Shape Sensor Gray
C 332D Sensor Red



X19 Lighting Enhancement Module Connector
Terminal Circuit Function Wire Color
A 100A Ground Black
B 107 Left-hand Flasher Orange
C 104A Left-hand Turn/Warning Light Yellow
D 105A Right-hand Turn/Warning Light Green
E 106 Right-hand Flasher Violet



X20 Right-Hand Gate Latch Switch Connector
Terminal Circuit Function Wire Color
- 220E Ground Black
- 223A Power Orange



X21 Bale Diameter Connector
Terminal Circuit Function Wire Color
A 330B Ground Black
B 336A Bale Diameter Sensor Blue
C 332B Sensor Red



X22 Twine Actuator Connector
Terminal Circuit Function Wire Color
A 314A Twine Actuator Yellow
B 315B Twine Actuator Green



PP98408,00000F1 -19-24JUN09-3/4

X23 PTO Speed Sensor
Terminal Circuit Function Wire Color
A 411A PTO Slip Clutch Alert Sensor Brown
B 410B Ground Black



X24 Pickup Speed Sensor
Terminal Circuit Function Wire Color
A 413A Pickup Slip Clutch Alert Sensor Orange
B 410C Ground Black



PP98408,00000F1 -19-24JUN09-4/4
