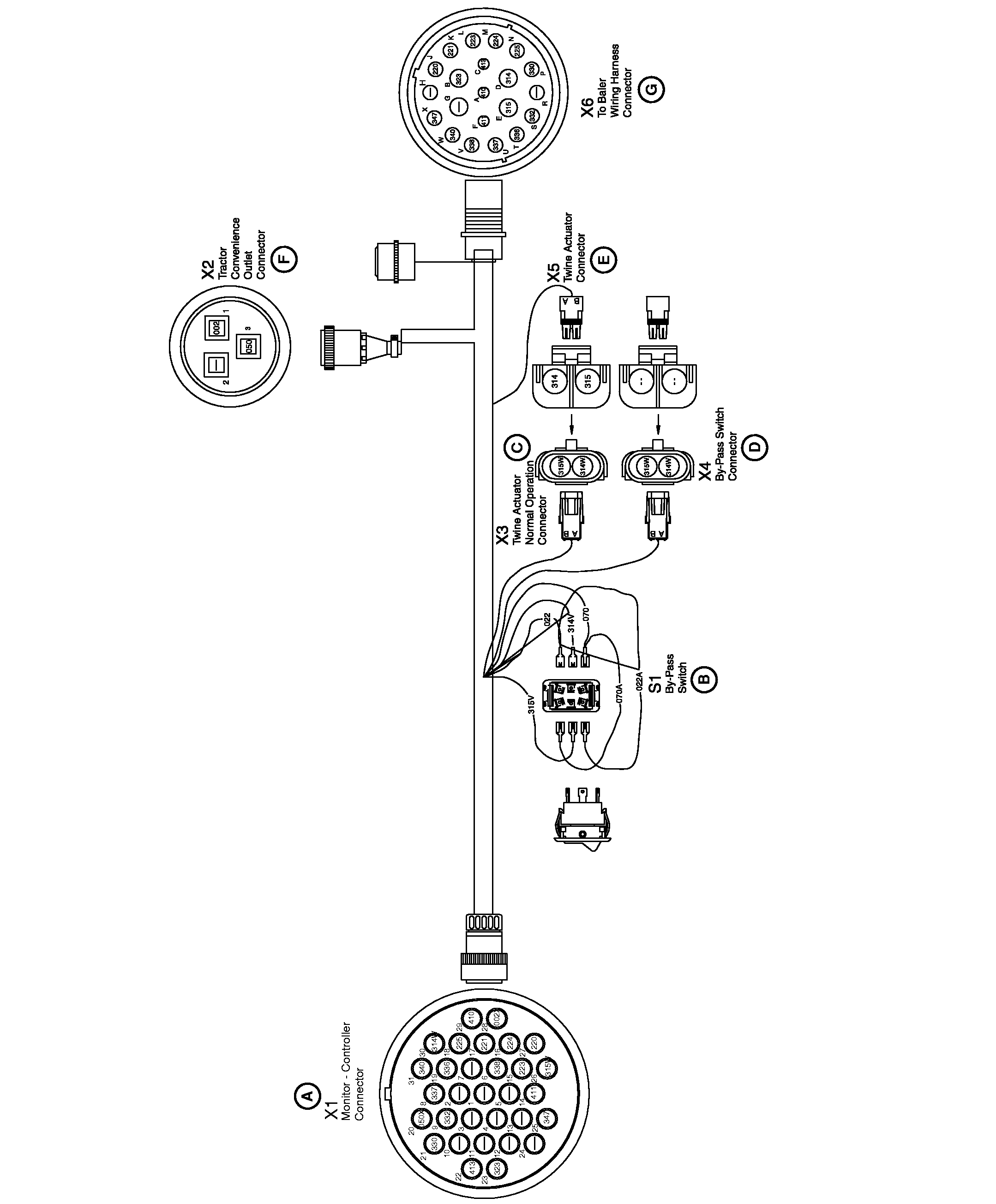

Wiring Harness Diagram-BaleTrak™ Pro Monitor-Controller

E57278

BaleTrak is a registered trademark of Deere & Company

PP98408,00000F3 -19-29JUN09-1/4


A-Monitor-Controller Connector (X1)
B-By-Pass Switch (S1)
C-Twine Actuator Normal Operation Connector (X3)


D-By-Pass Switch Connector (X4)
E-Twine Actuator Connector (X5)


F-Tractor Convenience Outlet Connector (X2)


G-To Baler Wiring Harness Connector (X6)

PP98408,00000F3 -19-29JUN09-2/4

X1 BaleTrak™ Monitor-Controller Connector
Terminal Circuit Function Wire Color
1   Open
2   Open
3   Open
4   Open
5   Open
6 338 Right Bale Shape Sensor Gray
7   Open
8 337 Left Bale Shape Sensor Purple
9 332 Bale Shape Sensor Power Red
10   Open
11   Open
12   Open
13   Open
14 411 PTO Speed Brown
15 223 Right Gate Switch Orange
16 224 Oversize Switch Yellow
17 221 Left Gate Latch Switch Brown
18 225 Net Switch Green
19 336 Bale Size Sensor Blue
20 050X Ground Black
21 330 Bale Shape Sensor Ground Black
22 413 Pickup Speed Orange
23 323 Net Actuator Orange
24   Open
25 347 Variable Core Valve Purple
26 315W Net and Twine Actuator Green
27 220 Switch Ground Black
28 002X Power Red
29 410 Speed Sensor Ground Black
30 314W Twine Actuator Yellow
31 340 Variable Core Valve Ground Black



X2 Tractor Convenience Outlet Connector
Terminal Circuit Function Wire Color
1 002 Power Red
2   Open
3 050 Ground Black



X3 Twine Actuator Normal Operation Connector
Terminal Circuit Function Wire Color
A 314W Twine Actuator Yellow
B 315W Twine/Net Actuator Green



X4 Bypass Switch Connector
Terminal Circuit Function Wire Color
A 314V Twine Actuator Yellow
B 315V Twine/Net Actuator Green



X5 Twine Actuator Connector
Terminal Circuit Function Wire Color
A 314 Twine Actuator Yellow
B 315 Twine/Net Actuator Green



PP98408,00000F3 -19-29JUN09-3/4

X6 Monitor Harness-to-Baler Harness Connector
Terminal Circuit Function Wire Color
A 410 Speed Sensor Ground Black
B 323 Net Actuator Orange
C 413 Pickup Speed Orange
D 314 Twine Actuator Yellow
E 315 Twine/Net Actuator Green
F 411 PTO Speed Brown
G   Open
H   Open
J 220 Ground Black
K 221 Left Gate Latch Switch Brown
L 223 Right Gate Latch Switch Orange
M 224 Oversize Bale Switch Yellow
N 225 Net Switch Green
P 330 Ground Black
R   Open
S 332 Bale Shape Sensor Red
T 336 Bale Diameter Sensor Blue
U 337 Left Bale Shape Sensor Purple
V 338 Right Bale Shape Sensor Gray
W 340 Ground Black
X 347 Variable Core Purple



S1 Bypass Switch Connector
Terminal Circuit Function Wire Color
- 315V Twine/Net Actuator Green
- 070A Ground Black
- 022A Power Red
- 070 Ground Black
- 314V Twine Actuator Yellow
- 022 Ground Black



PP98408,00000F3 -19-29JUN09-4/4
