Wheel Spindle Positions-MegaWide™ Plus Pickup With 31 x 13.5-15 Tires
NOTE:
Wheel spindle position controls baler height and feeding capacity.
Normal position
(A) is recommended for most baling conditions.
-
Recommended for push bar.
-
Pickup teeth may touch the ground with pickup completely lowered depending on tractor drawbar height.
Raised position
(B) is recommended for straw crops with tall stubble and soft ground conditions.
-
Recommended for push bar.
-
Pickup teeth will not touch the ground with pickup completely lowered.
-
Tighten nuts to specification.
Specification
|
Wheel Spindle Mounting Hardware
-Torque
|
237 N·m
|
(175 lb.-ft.)
|
-
Install tires. (See TIRE INSTALLATION AND WHEEL NUT TORQUE in this section.)
If wheel spindle position needs changed, see ADJUSTING WHEEL SPINDLES in this section.
|

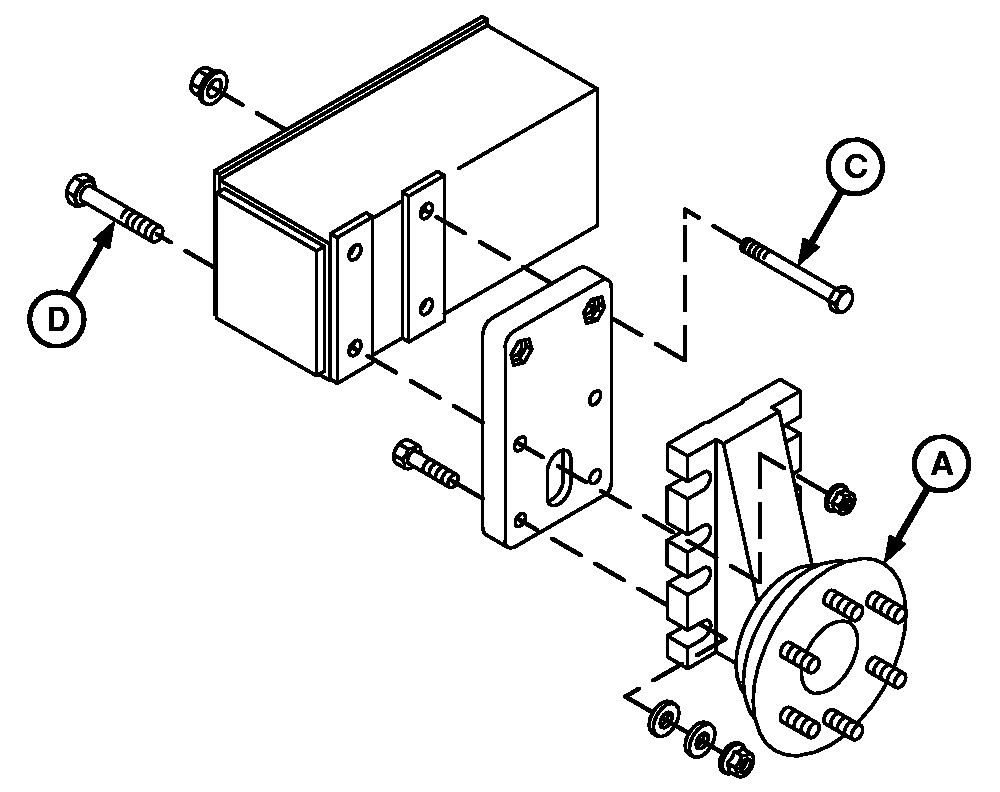

Normal Position

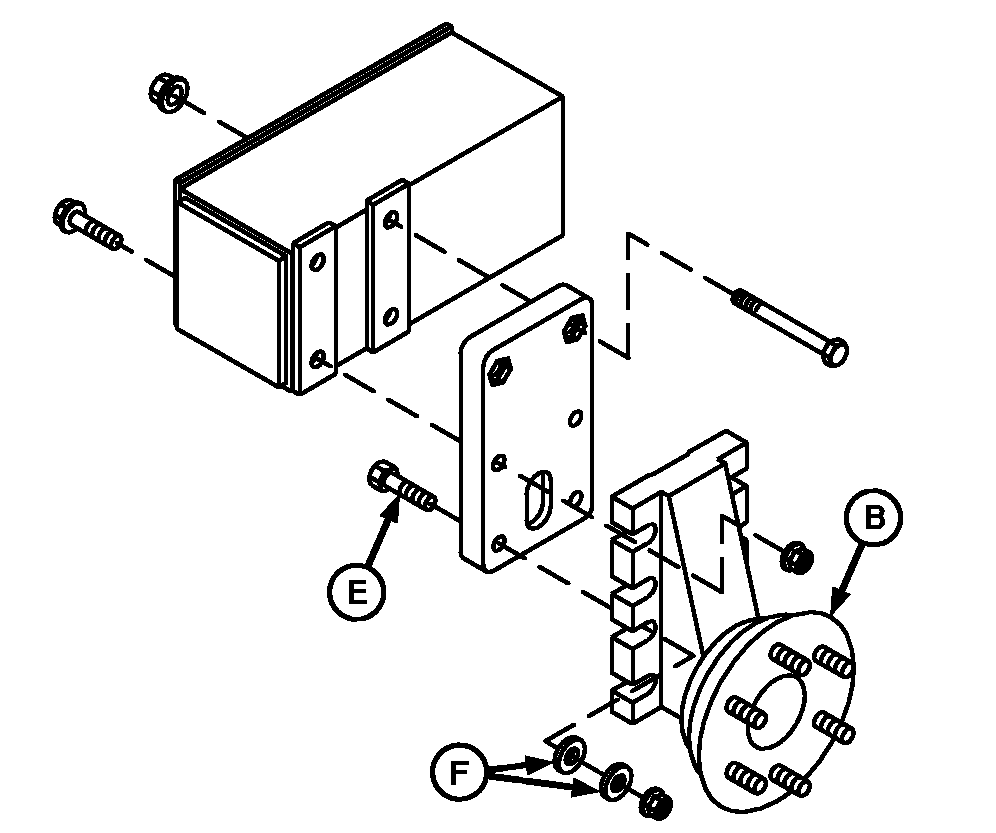

Raised Position
A-Normal Position
B-Raised Position
C-Flange Head Cap Screw, M16 x 150-8.8 (2 used)
D-Flange Head Cap Screw, M16 x 180-10.9 (2 used)
E-Cap Screw, M16 x 60-8.8 (2 used, 468 only)
E-Cap Screw, M16 x 80-8.8 (2 used) (568 only)
F-Washer 17 x 34 x 4 mm (4 used, 568 only)
|
