Wheel Spindle Positions-MegaWide™ Plus Pickup With 21.5L x 16.1 Tires

IMPORTANT: No raised baler position is available with this spindle. Using spindle positions other than NORMAL position may lead to machine damage.

Normal position shown is recommended for all baling conditions.

  • Recommended for push bar.
  • Pickup teeth may touch the ground with pickup completely lowered, depending on tractor drawbar height.

IMPORTANT: Install spindle flat plate (F) facing up to avoid baler damage.

NOTE: Install spacer plate with large hole at the top.

NOTE: Cap screw heads are to face inside of frame; nuts on outside of wheel spindle.

1. Install spacer plate (A) and wheel spindle with hub (D) on frame (C) with four M16 x 180 cap screws (B) and four M16 nuts (E).

2. Tighten nuts to specification.

Specification

Wheel Spindle Mounting Hardware -Torque 350 N·m  (255 lb.-ft.)

3. Repeat on opposite side.

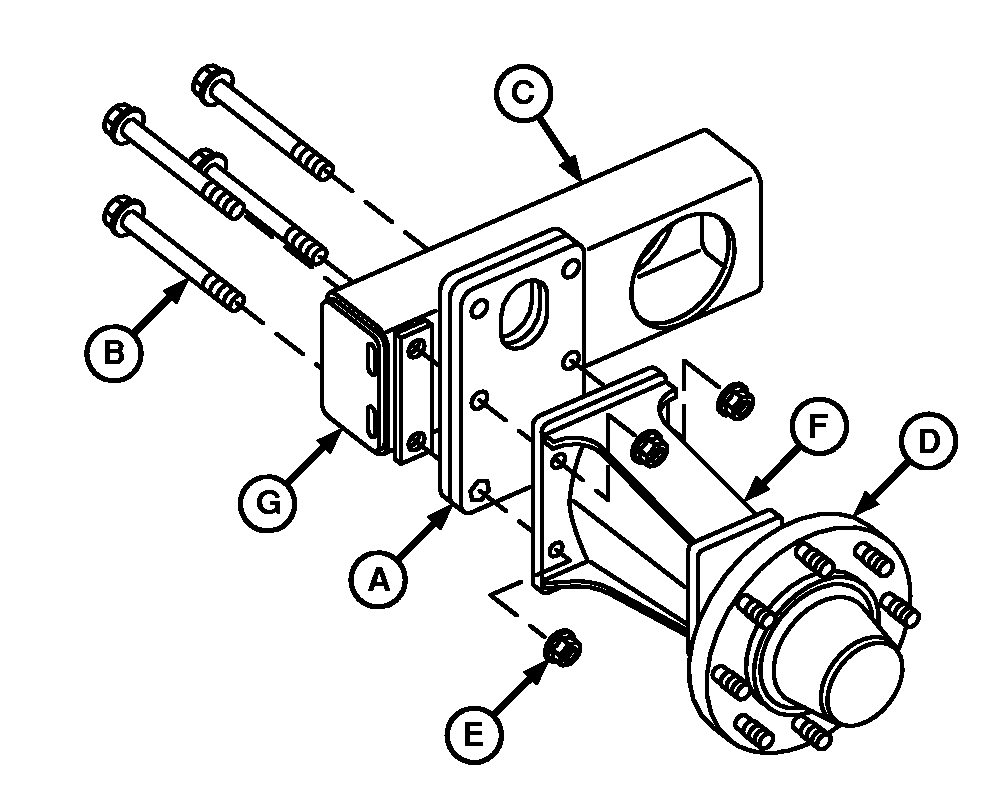

E54666

Normal Position


A-Spacer Plate
B-Cap Screw, M16 x 180-10.9 flange Head (4 used)
C-Frame
D-Spindle
E-Flange Nut, M16 (4 used)
F-Spindle Flat Plate
G-Location (Baler Frame)
