Checking and Adjusting Net Wrap Feed Roll Brake Spring

1. Open net wrap cover.

2. Disengage brake by pulling out and up on handle (A).

3. Check that spring length (C) is within specifications. Adjust by tightening or loosening nut (D).

Specification

Spring -Length Over Coils 22 ± 0.5 mm (0.87 ± 0.02 in.)

4. Engage brake by pulling out and down on handle (A) and positioning handle under tab (B).

5. Close net wrap cover.


A-Brake Handle
B-Tab
C-Spring Length Over Coils
D-Nut

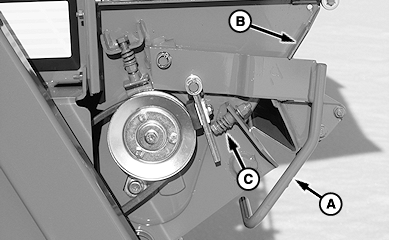

E56781

Left-hand Side Shown

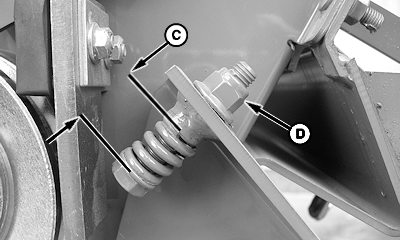

E57644
