Every 30 Hours

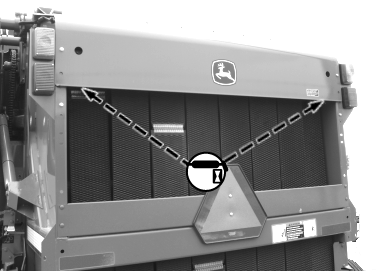

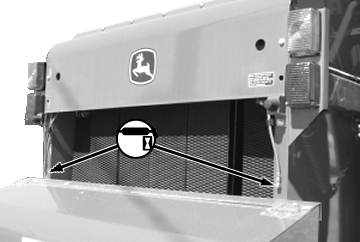

Bale Shape Sender Arms
E54532

With Net Wrap

E54548

Without Net Wrap

PP98408,000020E -19-17SEP09-1/5

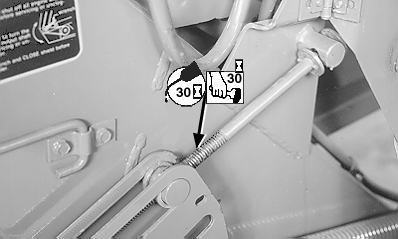

Pickup Lift Crank

Lubricate crank threads with SAE 30 or heavier oil, or with John Deere EP Moly or an equivalent SAE multipurpose grease.


A-Pickup Crank Thread

E47610

PP98408,000020E -19-17SEP09-2/5

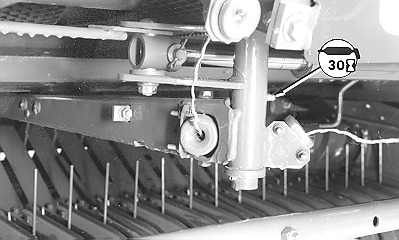

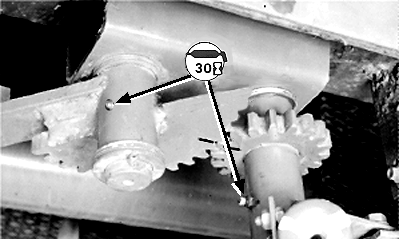

Twine Arms and Twine Actuator Rod

causym CAUTION: Twine arms can move unexpectedly. Keep hands out of twine arm path to avoid crushing. Turn off power BEFORE servicing or adjusting twine arms or twine cutter mechanism.

Stay out of the path of twine arms at all times when power to twine arm is ON.

If equipped with a MegaTooth ™ pickup; Rotate curtains out of the way to access lubrication fittings and actuator rod.

Clean off foreign material/crop buildup from actuator rod.

E47598
E39603

468 and 468S

E39777

568

MegaTooth is a trademark of Deere & Company

PP98408,000020E -19-17SEP09-3/5

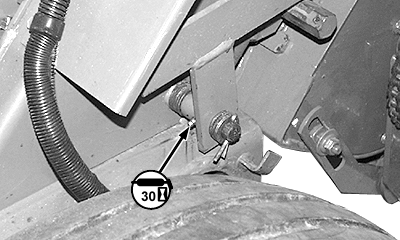

Pickup Drive Idler Pivot

NOTE: Shield removed for photographic purpose.

E48763

Right-Hand Side

PP98408,000020E -19-17SEP09-4/5

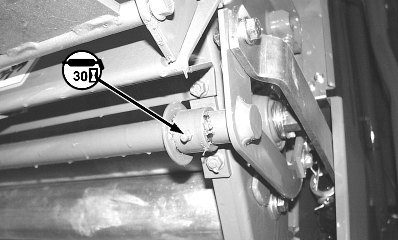

COVER-EDGE Net Wrap Counterknife Arm Pivot (If Equipped)

IMPORTANT: Do not over lubricate counterknife arm pivot lubrication fittings. This will result in grease getting onto the rubber roll, causing wrappage.

Lubrication fittings are located on both left and right-hand sides.

E48340

Right-Hand Side Shown
